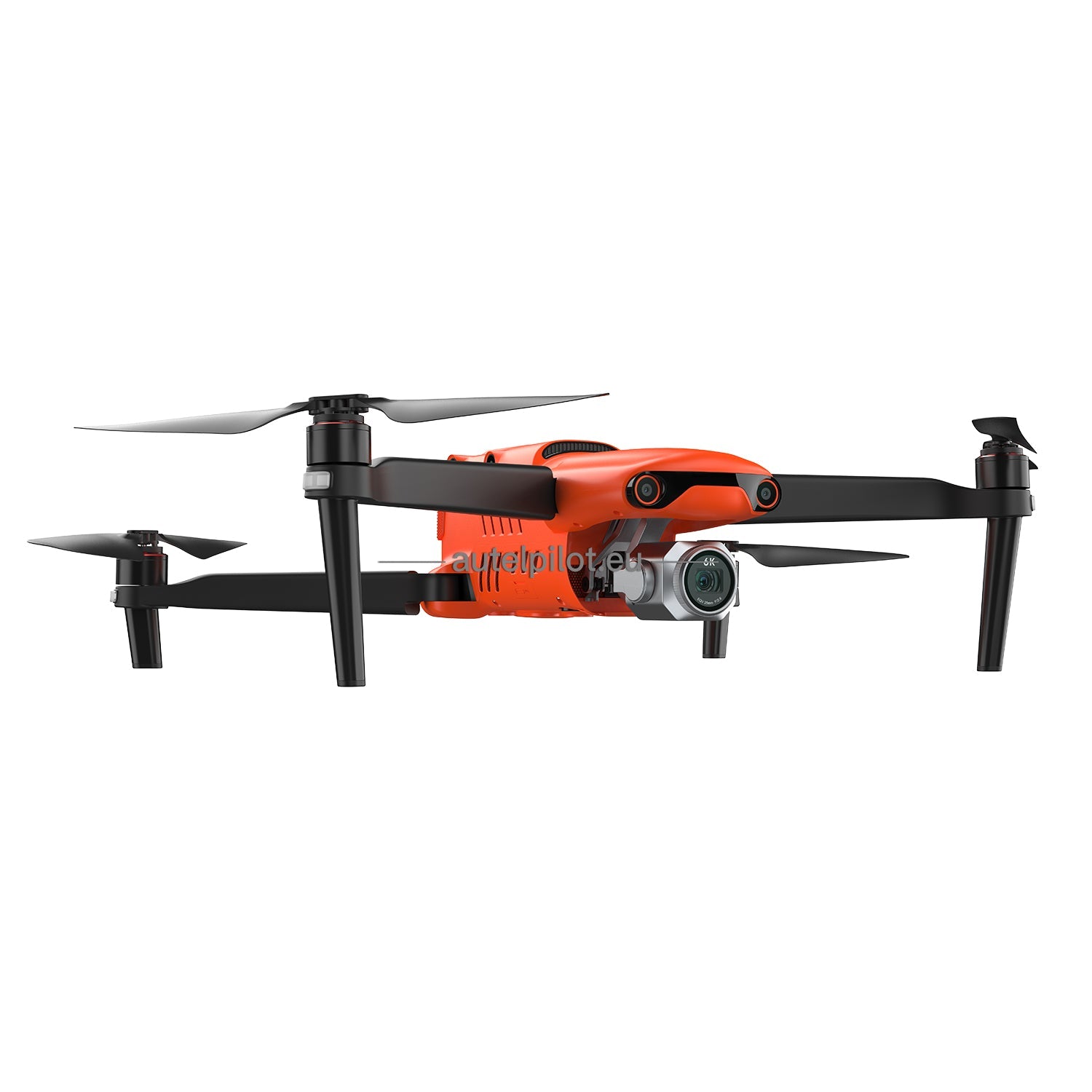

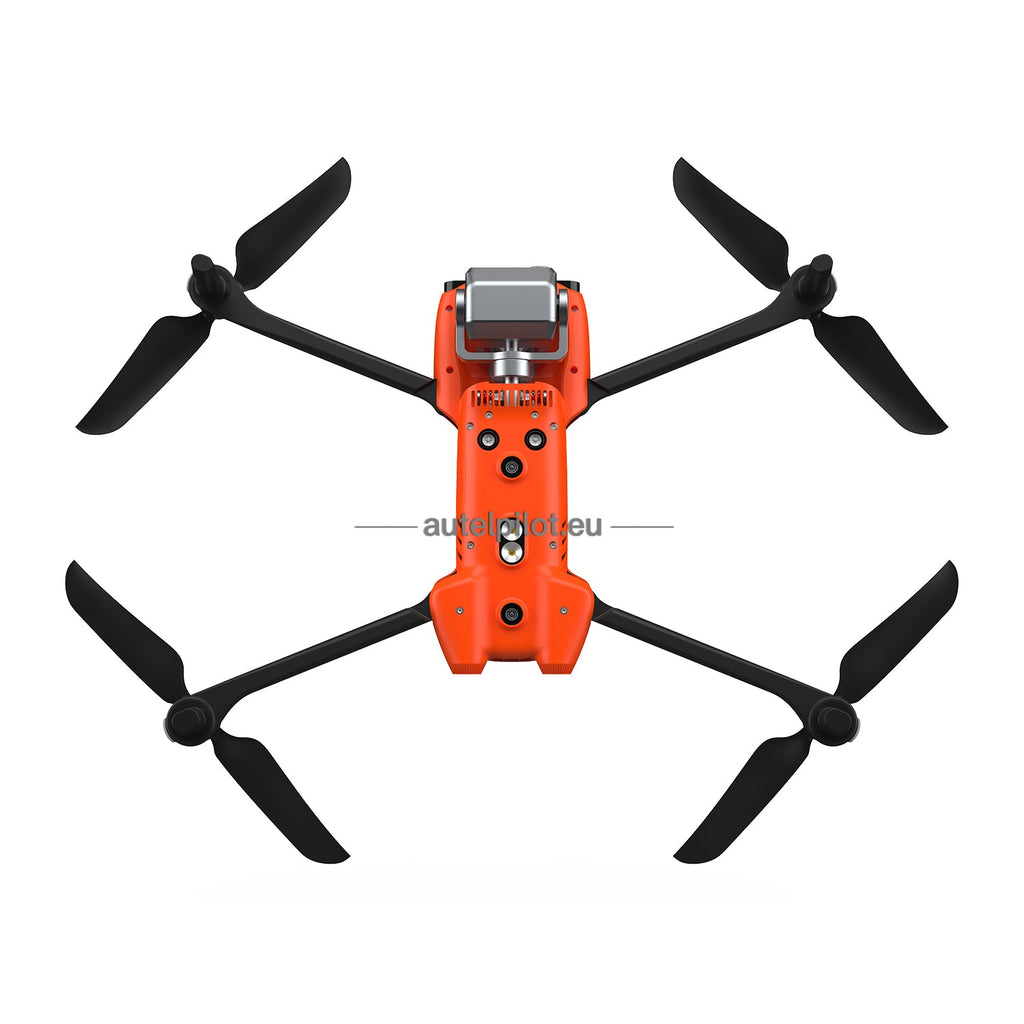

Autel Robotics EVO II Dual 640T V3 Enterprise Drone
Atuel Robotics EVO II Dual 640T V3 is equipped with a 640*512 high-resolution thermal imaging camera and 8K ultra HD visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.
In addition to the Dual camera, the EVO II Dual 640T V3 can accurately detect heat sources within a distance of 2-15 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T can regulate temperature deviations within 3 degrees Celsius.
A New Generation Of Thermal Sensor
The 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, and 16x digital zoom, and can recognize subjects up to 100 m away.
DRI Ranges: See a specific subject's identity, activity, or personal items from long distance
• Detection：Detect if an object is present.
• Recognition：See what type of object it is (i.e. person, vehicle, airplane).
• Identification：Determine subject affiliation and intent.
Maximum Efficiency In All Viewing Conditions
EVO II Dual 640T V3 supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.
Multiple Temperature Measurement Modes, Professional Analysis Tool
Central temperature measurement: View real-time display of the temperature in the center area of the screen.
Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time.
Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold.
Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified.
A Thend Preserve Even The Smallest Of Details
50MP Ultra-Sensitive Camera
Moonlight Algorithm 2.0 —The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.
0.8" Sensor Size—The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.
RYYB Sensor Technology—RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
PDAF+CDAF Autofocus System—Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
8K Video, Unmatched Clarity
EVO II Dual 640T V3 records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.
48MP Camera
The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T V3 the ultimate public safety tool.
4K HDR For Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
Powerful Telephone Zoom
Get The Full Scene，The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.
360° Obstacle Avoidance
Omnidirectional Obstacle Avoidance With 12 Visual Sensors
Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T V3 can easily build three-dimensional maps and plan paths through complex terrain in real-time.
Dynamic Track 2.0
The EVO II Dual 640T V3 can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Industry Leading Performance
38minutes Maximum Flight Time 45mph (20m/s) Maximum Flight Speed
27mph (12m/s) Maximum Wind Resistance 2lbs (920g) Maximum Lift Capability
Modular Design - Unlimited Expansion
Modular Design - Unlimited expansion,with V3 logo on the drone.
Deploy Rapidly - The EVO II 640T V3 can go from its case to the air in 45 seconds.
No Forced Updates - EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.(It’s required to update the latest firmware and app to enjoy comprehensive warranty)
Live Video Streaming - The EVO II Pro Dual 640T V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.
1080P/60FPS 12KM Transmission Range
SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities for your most critical workflows.
9+ Miles—Do more because you can fly further away.
QHD—Incredible video resolution within a mile, meeting most common use cases.
2.4GHz / 5.8GHz—Support tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
Autel Smart Controller V3
EVO II Dual 640T V3 upgraded with Smart Controller V3,7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight.The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
Great Enterprise ACCS
Enterprise V3 will come with 3 enterprise level accs: Strobe,Spotlight,and Loudspeaker.With Strobe Module,it will indicate the location of the drone at night to avoid accident.With Spotlight Module,it beams a powerful and long distance light when searching at night.With Loudspeaker Module,Enables effective on-site communication through long-distance live broadcasts and prerecorded audio loops.
Widely Application
-
EVO II Dual 640T V3 Enterprise Specs
-
Aircraft
Takeoff Weight(Without Accessories) 2.51 lbs (1136.5 g) Max Takeoff Weight
1999 g
Diagonal Length 16.8 inches (427 mm)

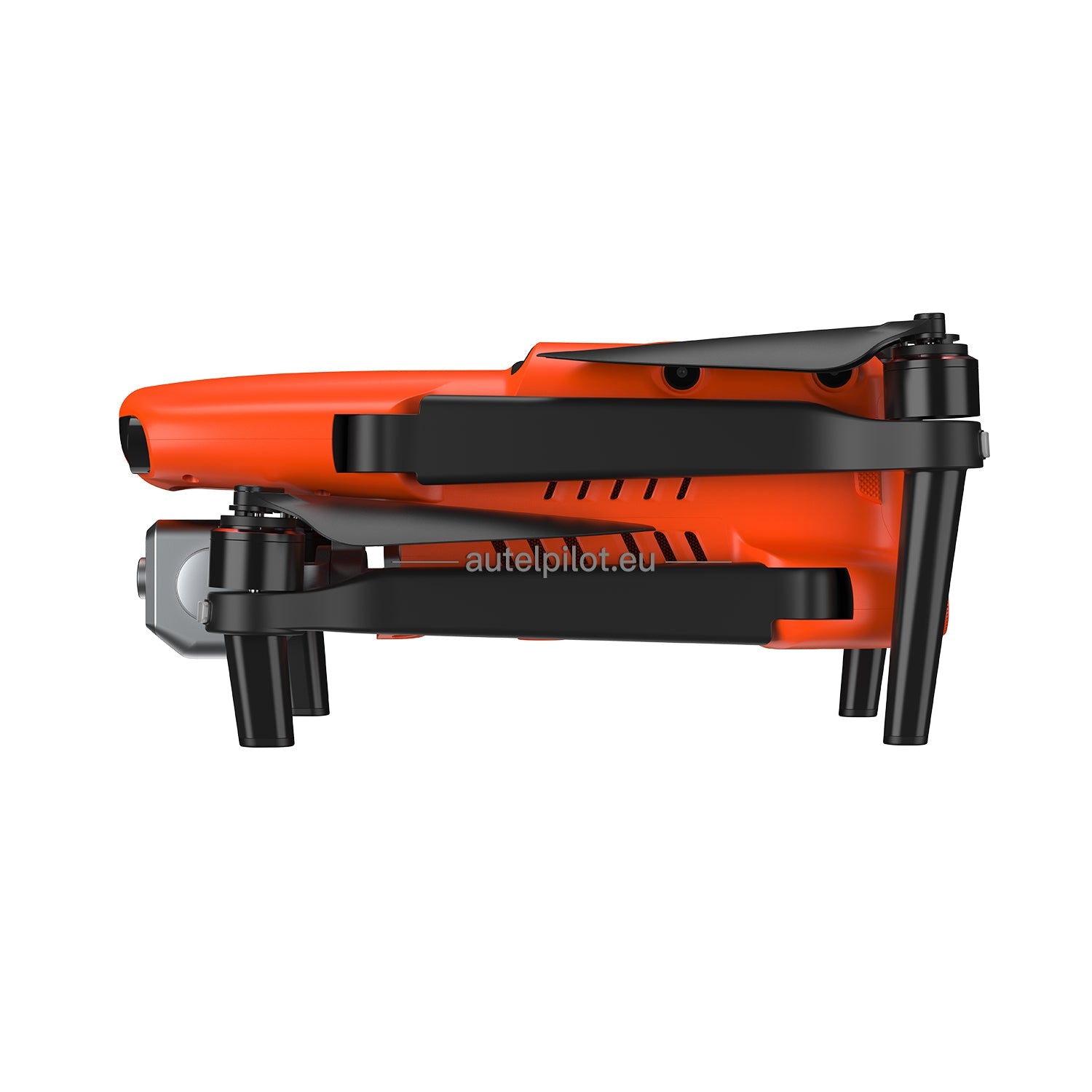

Size(L*W*H) Folded: 9.6*5.1*4.4 inches; 245*130*111mm
Unfolded: 19.9*24.4*4.4 inches; 506*620*111mmMax Service Ceiling Altitude 4.3 miles (7000 m) MSL Max Ascent Speed 18 mph (8 m/s) (Ludicrous) Max Descent Speed 9 mph (4 m/s) (Ludicrous) Max Level Flight Speed 45 mph (20 m/s) (Ludicrous) Max angular velocity 120°/s Max tilt angle 33° (Ludicrous) Max Flight Time (no wind) 42 min（without accessories） Max Hovering Time (no wind) 38 min（with strobe）
29 min（with spotlight）
34 min（with loudspeaker）
36 min（with RTK module）Operating Temperature Range 14℉ to 104℉ (-10℃ to 40℃) Max Wind Speed Resistance 27mph, 12 m/s (Take-off and landing) Operating Frequency 2.400 GHz - 2.4835 GHz；
5.725GHz - 5.850 GHzHovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m
Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GNSS works normally)Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) -
Gimbal
Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max control speed (Tilt) 300°/s Angular Vibration Range ±0.005° -
Remote controller and image transmission
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power (E.I.R.P) FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7GMax Transmission Distance (unobstructed, free of interference) FCC：9.3 miles (15 km)
CE：5 miles (8 km)Display screen 2048x1536 60fps Battery 5800mAh Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)Charging time 90 minutes Internal Storage ROM 128GB -
Sensing system
Sensing system type Omnidirectional sensing system Forward Accurate measurement range: 0.5-18 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Backward Accurate measurement range: 0.5-16 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Upward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°Downward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 100°, vertical: 80°Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 65°, vertical: 50°Operating Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) -
-
EVO II Dual 640T Enterprise thermal camera
Sensor Uncooled VOx Microbolometer Lens FOV H33°V26°
Focal length 13mmZoom 1-16x Sensor resolution 640*512 Pixel size 12μm Wavelength range 8 - 14μm Temperature range High gain mode: -20° to +150°
Low gain mode: 0° to +550°Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃Accurate temperature
measurement distance2-20 meters Video resolution 640x512@25fps Video format MOV / MP4 (Support H.264/H.265) Camera resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720Photo mode Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60sPhoto format JPG (with irg file) -
EVO II Dual 640T Enterprise V3 visual camera
Sensor 1/1.28"(0.8") CMOS; 50M effective pixels Lens FOV: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus range: 0.5 m to infinity (with auto focus)ISO range Video: 100-64000
Photo: 100-6400Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1-16x (up to 4x lossless zoom) Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging Maximum photo size 8192*6144（4:3）
4096*3072（4:3）
3840x2160（16:9）Image Format JPG (default) / DNG / JPG+DNG Video format MOV / MP4 Video resolution 3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P120/P60/P50/P48/P30/P25/P24Max bitrate 80Mbps Supported file system FAT32/exFAT -
Accessories
Strobe Dimensions：39*72*34 mm
Weight：19.5 g
Connections：Floating Connectors
Power：Avg. 1.6W
Controllable Range：5000 m
Light intensity：Min 50cd；Max 486cd；Avg. 290cdLoudspeaker Dimensions：46*80*77 mm
Weight：98.5 g
Connections：Floating Connectors
Power：Max 18W
Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m；
Max Bitrate：36kbps
Adjustable Angle Range：0°~45°Spotlight Dimensions：48.5*72*63 mm
Weight：77 g
Connections：Floating Connectors
Power：Max 35W
Controllable Range：30 m
Adjustable Angle Range：0°~90°
Illuminance：FOV14°, Max：11lux @ 30m StraightRTK Module Dimensions：55.5*72.5*57 mm
Weight：59.5 g
Connections：Floating Connectors
Power：~ 3W
RTK Positioning Precision：
1.5 cm + 1 ppm（(Vertical）
1 cm + 1 ppm（Horizontal） -
Battery
Capacity 7100 mAh Voltage 11.55 V Battery type LiPo 3S Energy 82 Wh Weight 365 g Charging temperature range 5℃ to 45℃ Storage temperature and humidity -10~30℃，65±20%RH Recommended storage temperature 22-28℃ Max charging power 93W Charging time 90 minutes -
Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5AVoltage 13.2±0.1V Rated power 66W -
Multi-Charger
Voltage 13.2 V Charging temperature range 5℃ to 45℃
-
-

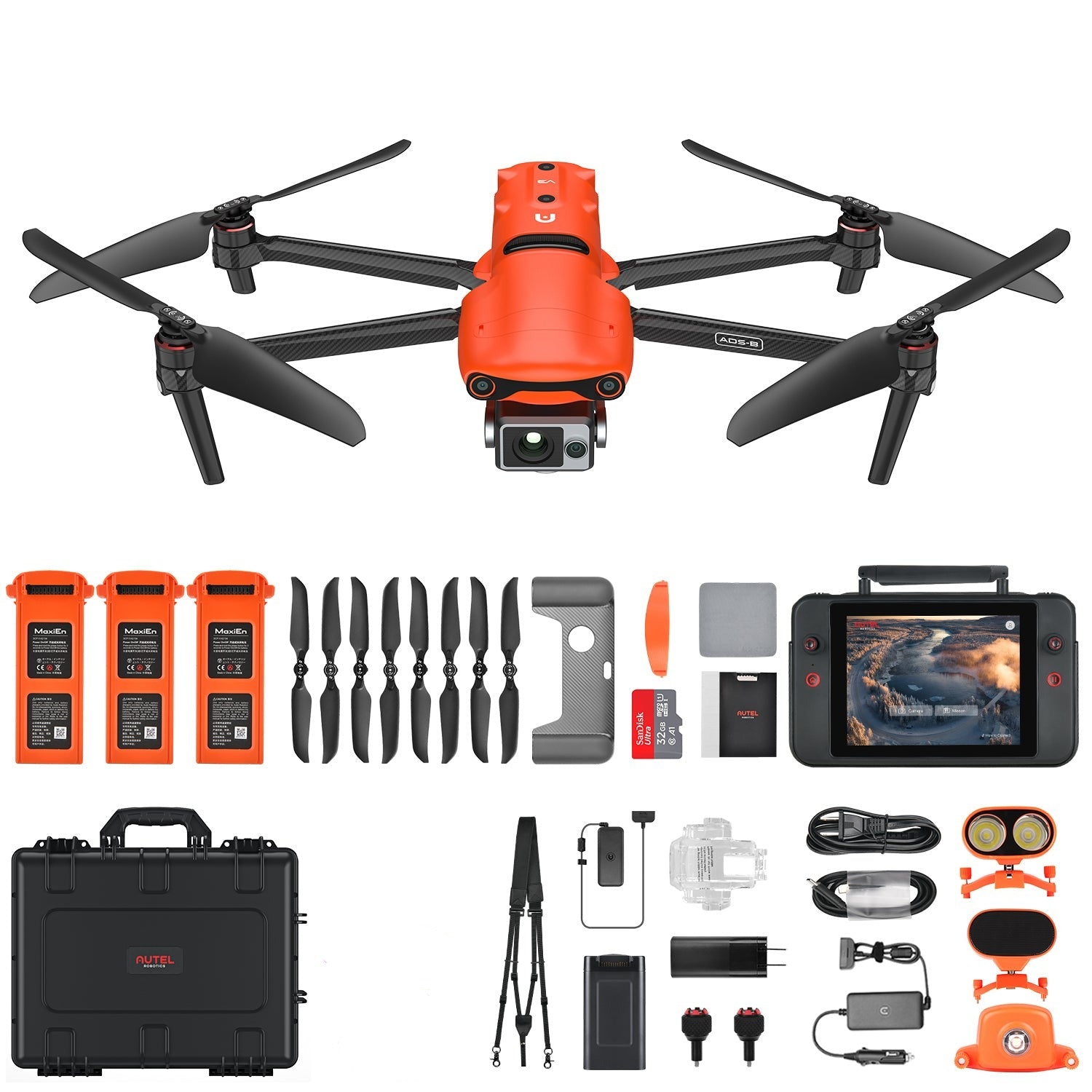

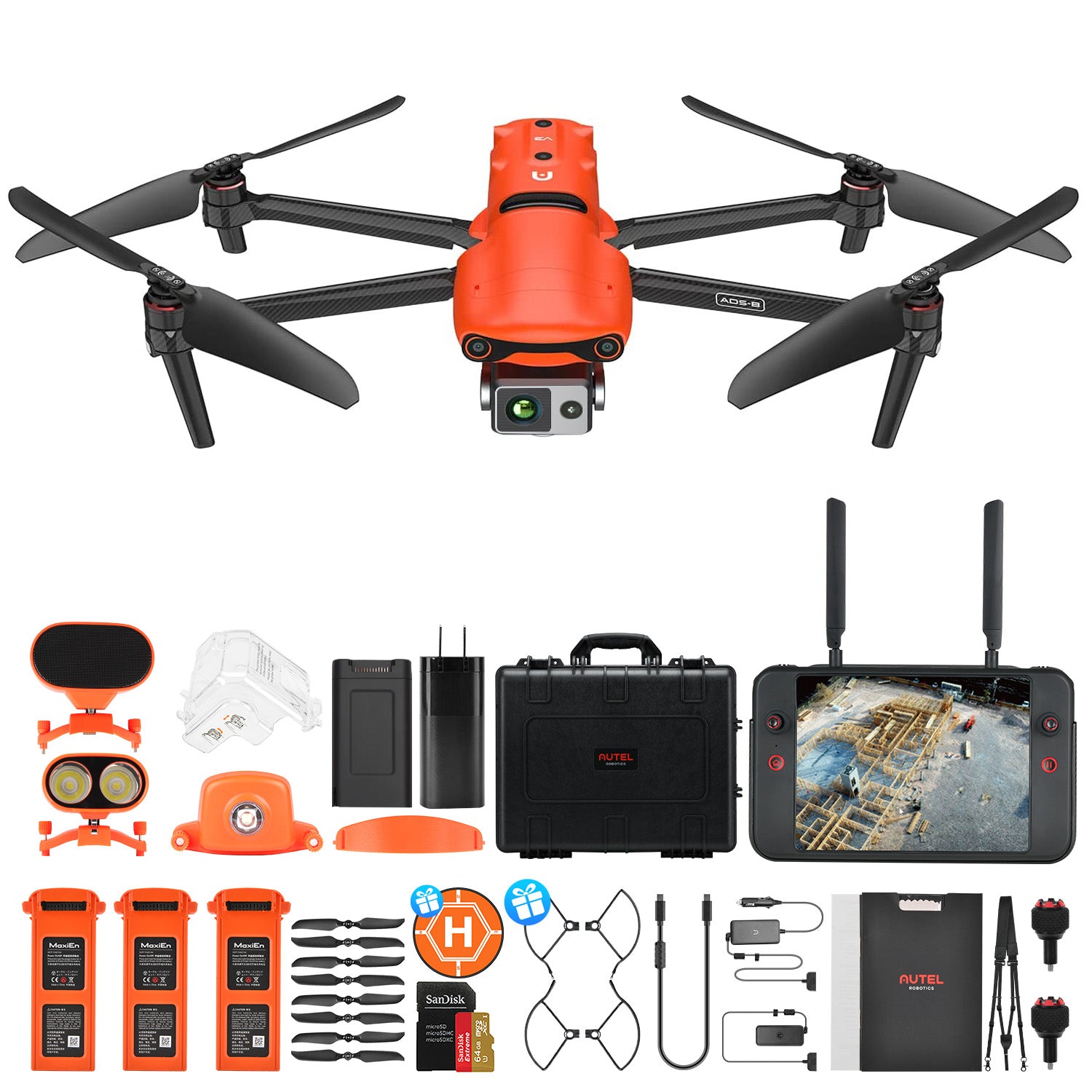

What's In The Box?Aircraft(Battery,propeller,gimbal cover,32G SD card included)*1
Remote Controller(sticks included)*1
Spare Propeller(pair)*2
Spare Battery*2
Battery Charger+Power cable*1
Car charger*1
Multi-charger*1
RC charger*1
RC charger cable*1
Spare control stick(pair)*1
RC protective case*1
RC landyard*1
Carring Case*1
Quick guide*1 loudspeaker*1 spotlight*1 strobe*1
-
