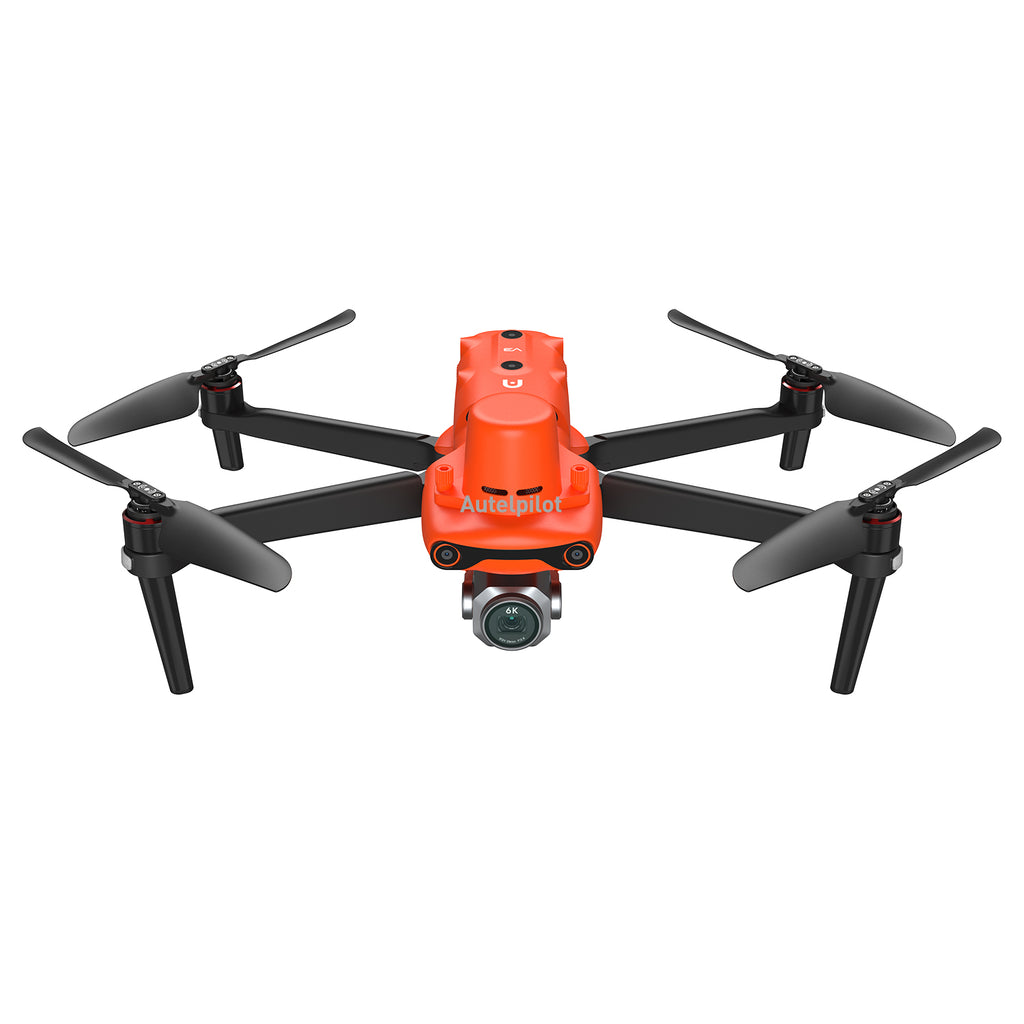

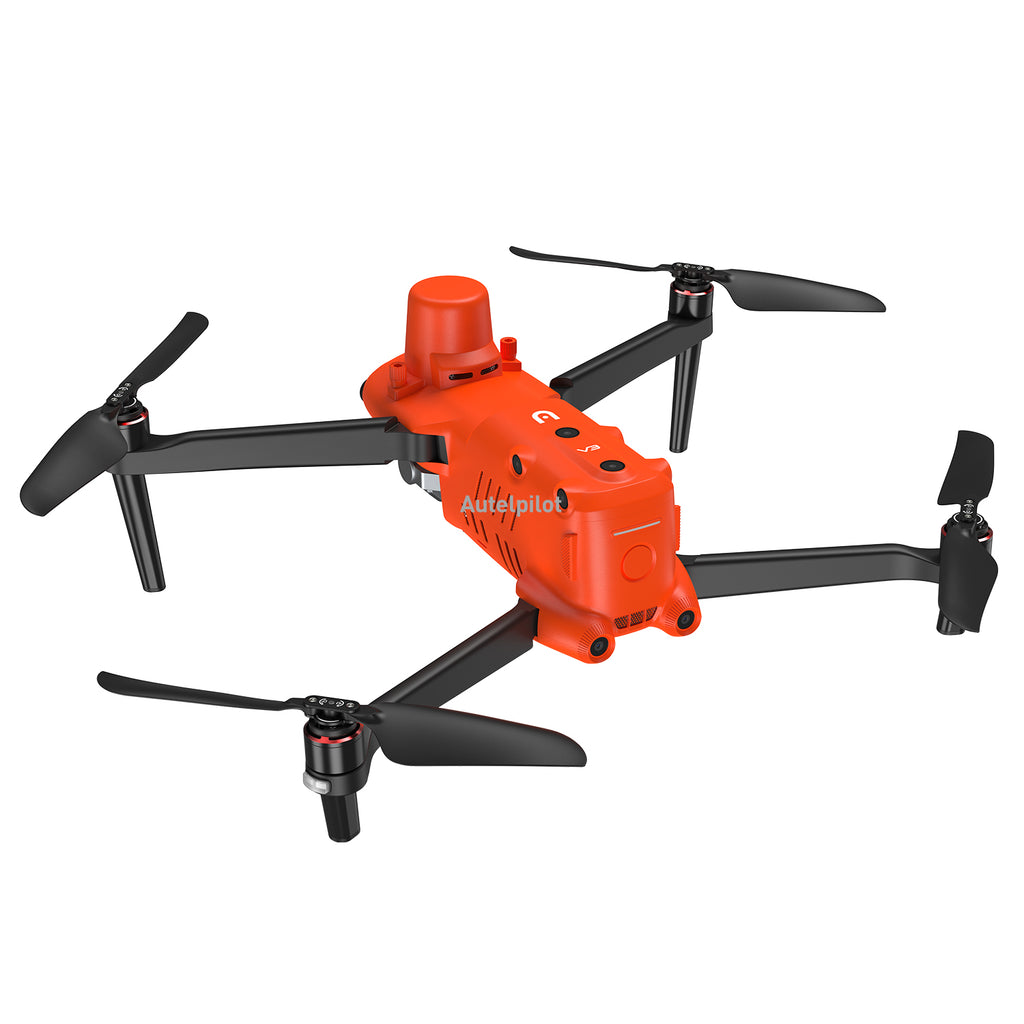

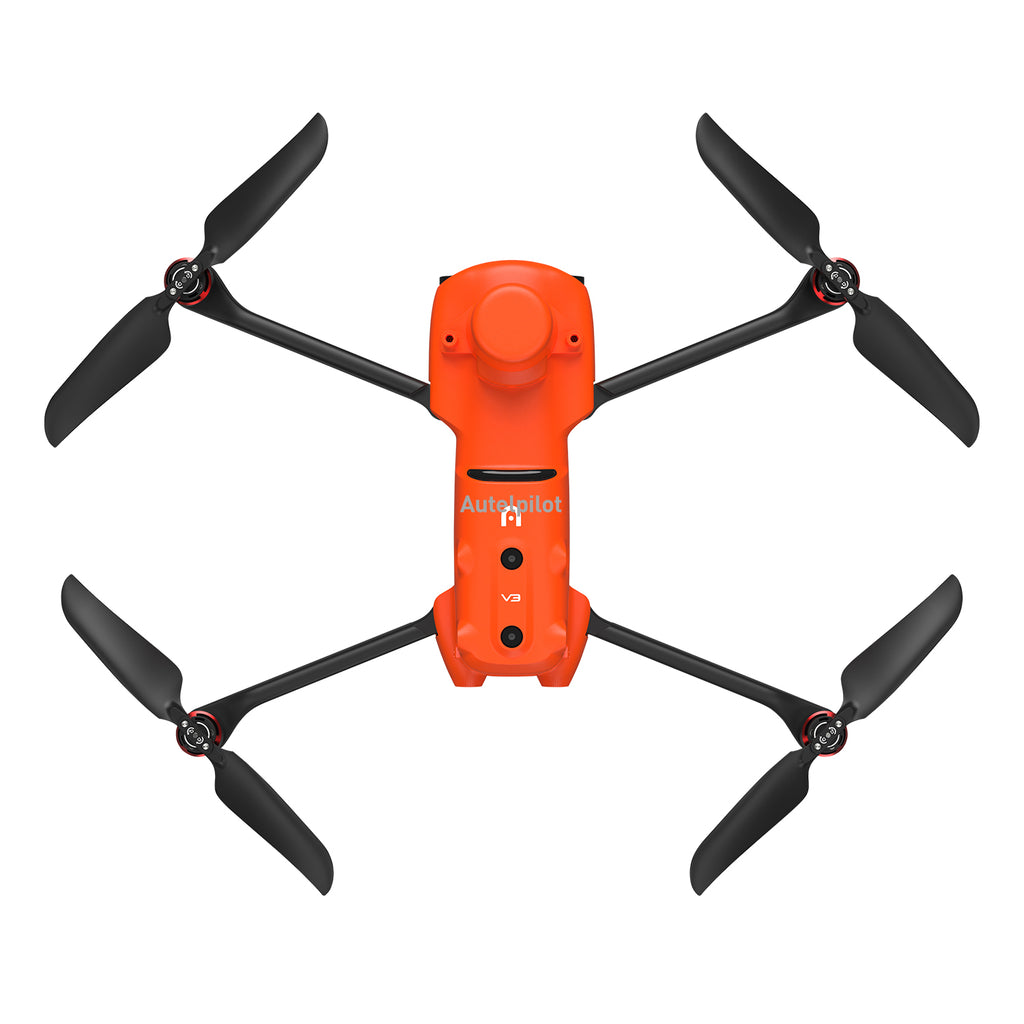

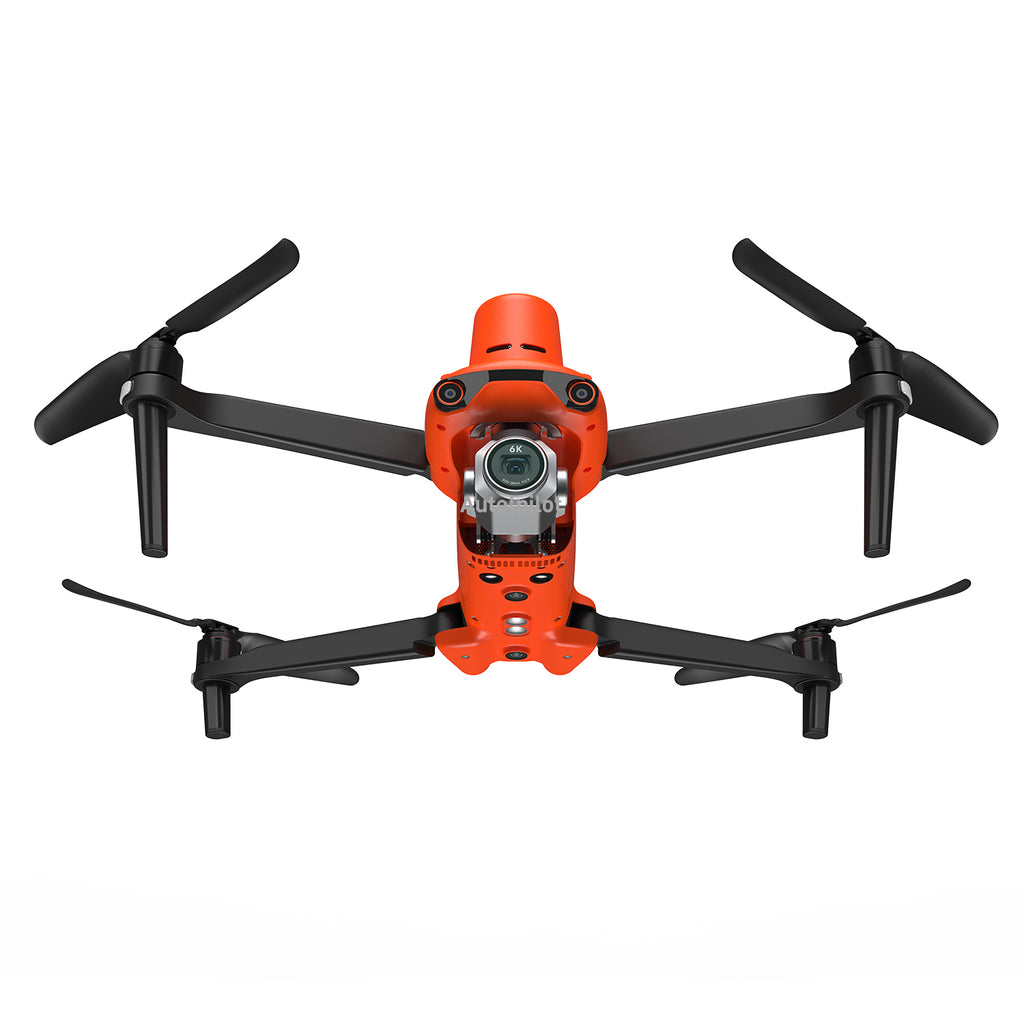

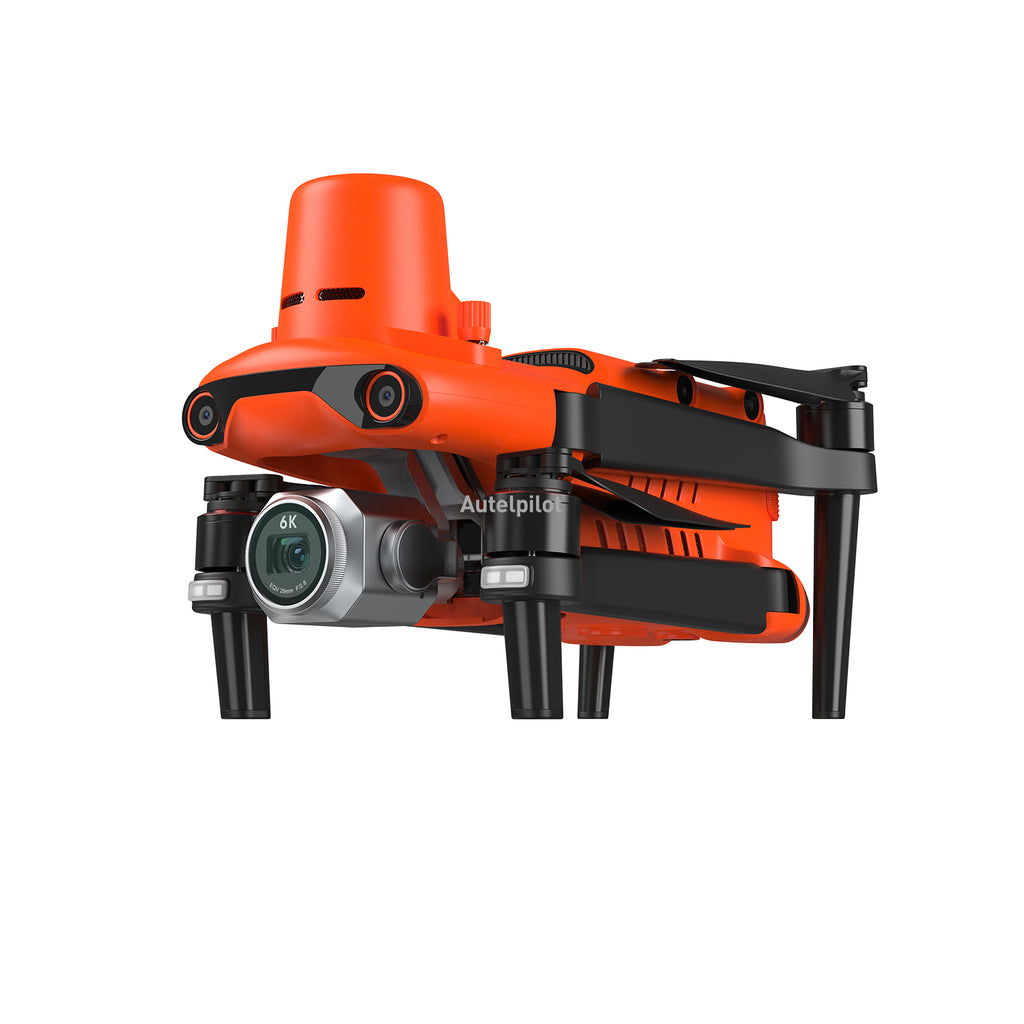

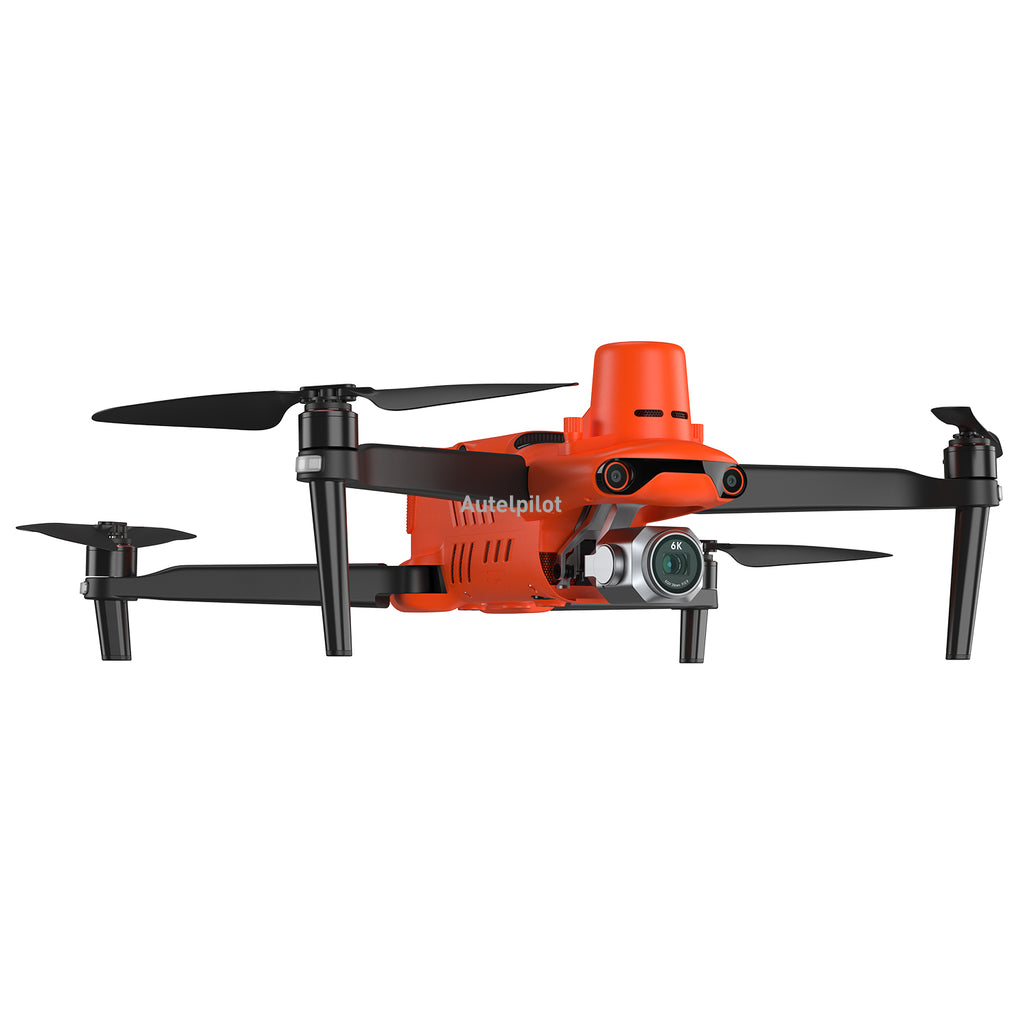

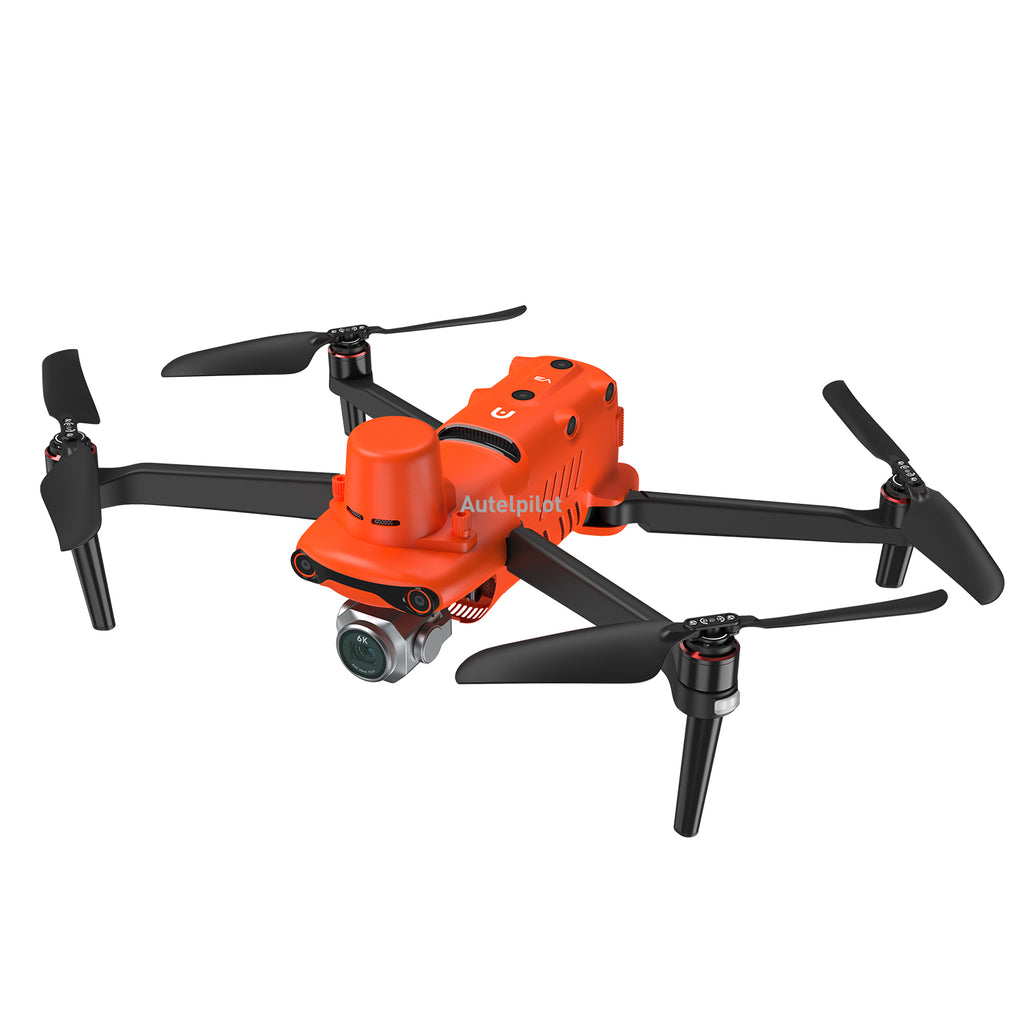

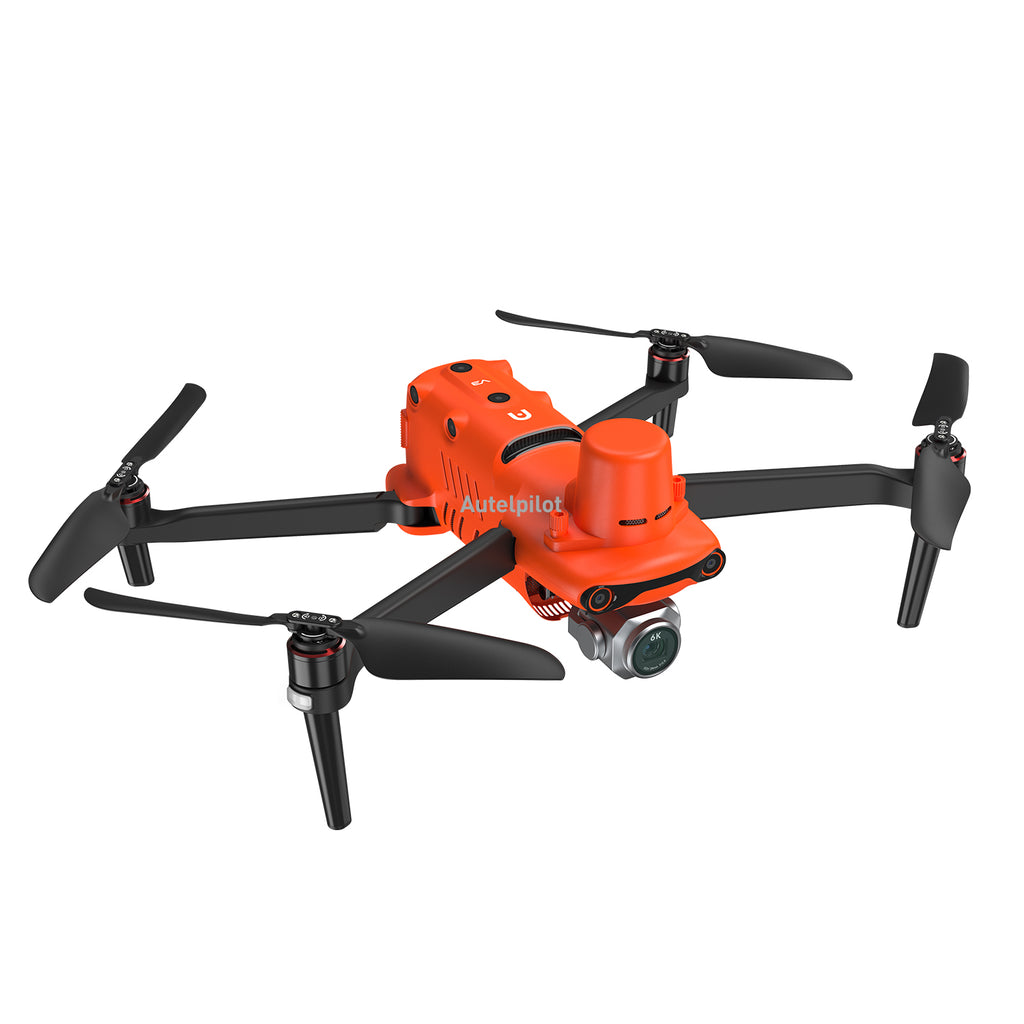

Autel Robotics EVO II Pro RTK V3 Drone

Autel EVO 2 Pro RTK V3 Specs

• Aircraft

  Weight (With propellers, battery and RTK module)	1237g±0.5g（EVO II Pro RTK V3)
  Max Takeoff Weight	4.41 lbs+ (1999 g)

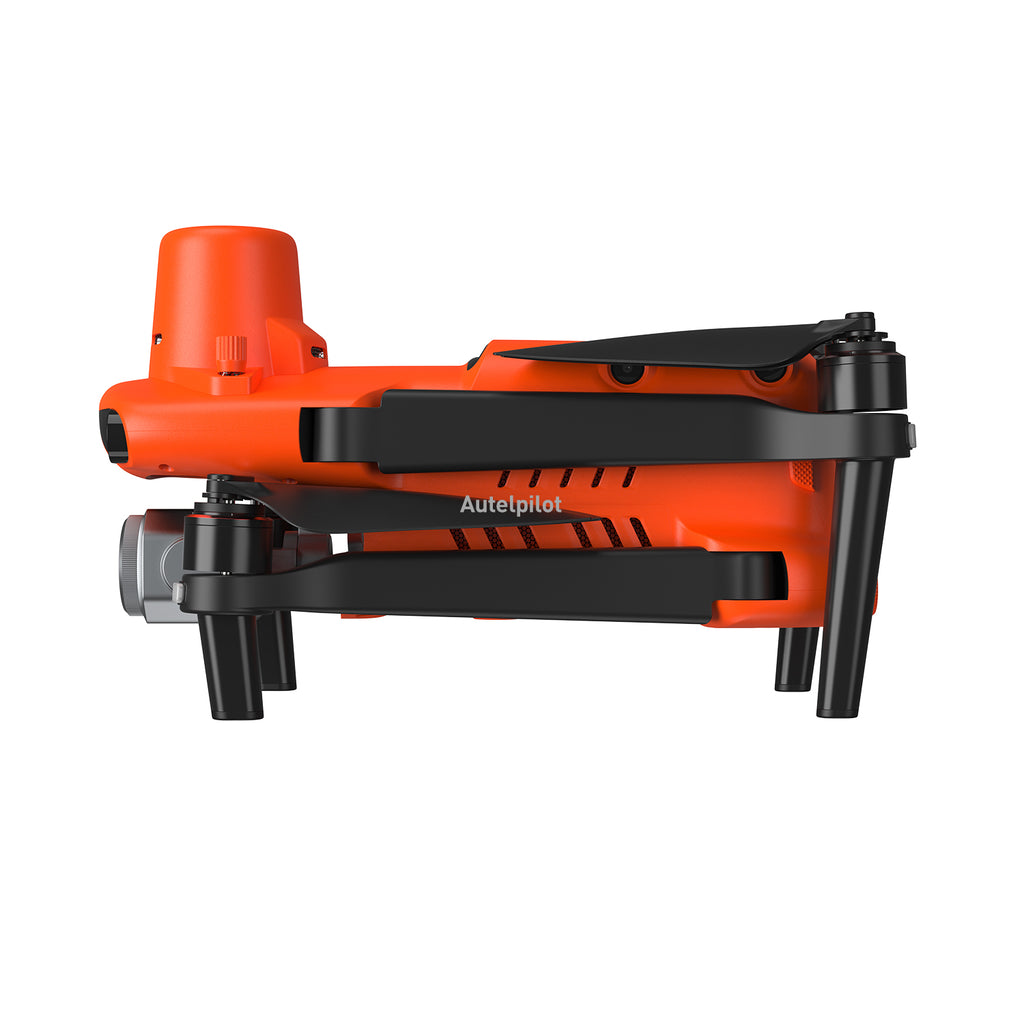

  Size(L*W*H)	Folded: 230*130*143mm; 9.1*5.1*5.6 inches Unfolded: 457*558*143mm; 18*22*5.6 inches
  Wheelbase	397 mm
  Maximum Service Ceiling Altitude	7000 m
  Max ascent speed	8 m/s (Ludicrous)
  Max descent speed	4 m/s (Ludicrous)
  Max horizontal flight speed	20m/s (Ludicrous)
  Max flight distance (no wind)	21 km
  Max angular velocity	120°/s
  Max tilt angle	33° (Ludicrous)
  Max flight time	36 min
  Max hovering time (no wind)	32 min
  Operating temperature range	14°F to 104°F (-10℃ ~ 40℃)
  Maximum resistance to wind	27mph, 12 m/s (Take-off and landing)
  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
  Transmission power(E.I.R.P)	900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  Image position compensation	The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

• GNSS

  Single frequency high sensitivity GNSS	GPS+BeiDou+Galileo（Asia） GPS+GLONASS+Galileo（Other areas）
  Multi-frequency multi-system high-precision RTK GNSS	Frequency points used： GPS：L1/L2； GLONASS：L1/L2； BeiDou：B1/B2； Galileo：E1/E5 First positioning time:<50 s Positioning accuracy: vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS) 1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
  Transmission power(E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：9.3 miles (15 km) CE：5 miles (8km)
  Display screen	2048x1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	120 minutes
  Internal Storage	ROM 128GB

• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

• EVO II Pro RTK V3 visual camera

  Sensor	1 inch CMOS; 20M pixels
  Lens	FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO range	Video: 100-44000 Photo: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / 12bits DNG / JPG+12bits DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	80Mbps
  Supported file system	FAT32/exFAT

•

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

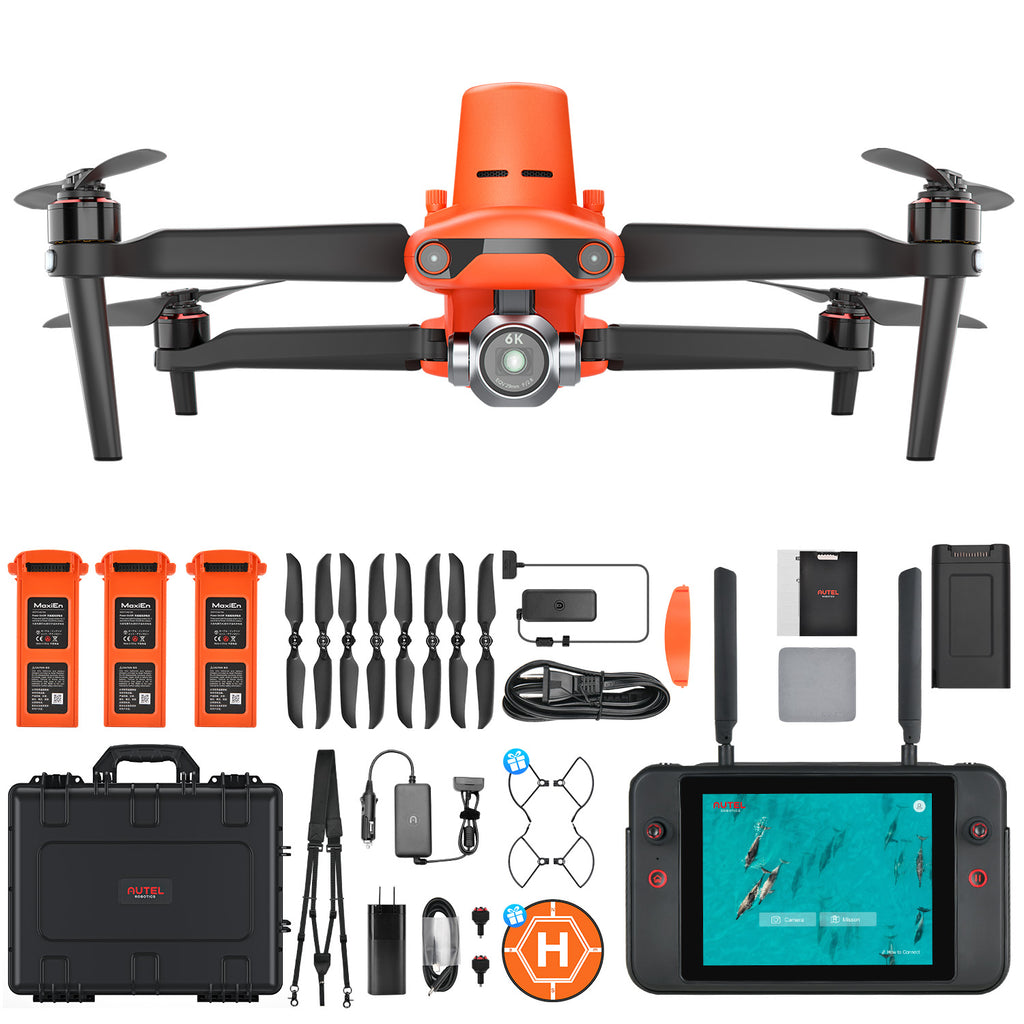

What's Included?

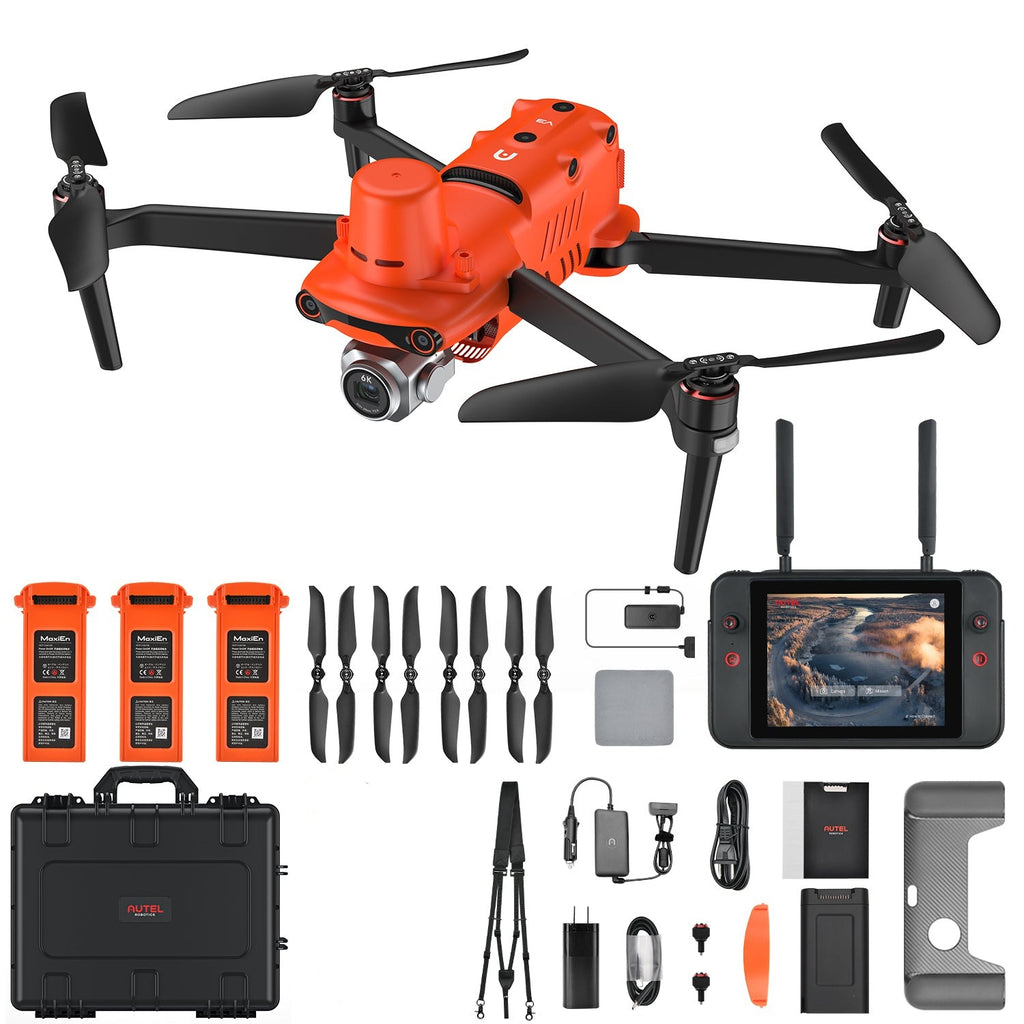

- EVO II Pro RTK V3 Rugged Bundle -

• Aircraft *1( (Battery, propeller, gimbal cover)
• Remote Controller*1
• Spare Propellers*1 pair
• Spare Battery*2
• Battery Charger+Power Cable*1
• Car Charger*1
• Multi-Charger*1
• RC Charger *1
• RC Charging Cable*1
• Spare Control Stick (pair)*1
• RC Protective Case*1
• RC Lanyard*1
• Extended Port Cover*1

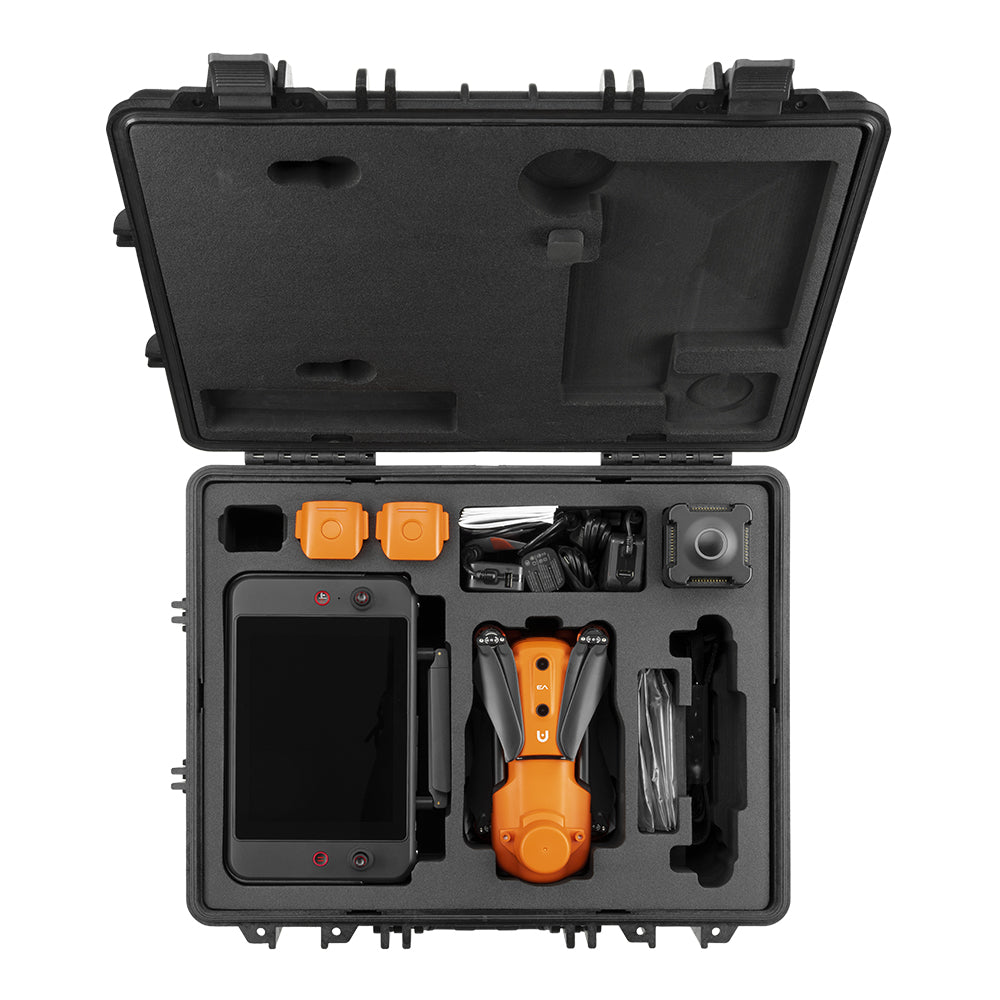

• Protector Case*1
• Quick Guide
•


EVO II Pro RTK V3 FAQ

Q: What is the RTK positioning accuracy?
A：1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

Q: Which RTK base station modes are currently supported?
A： The A-RTK base station is currently supported.

Q: Is the gimbal replaceable?
A： Yes. The product adopts a modular design, allowing for the payload to be replaced as needed.

Q: How long does it take to fully charge the battery?
A： It takes about 90 minutes to fully charge each battery.
