【Auto 20% OFF!】Autel Robotics EVO II Dual 640T RTK V3 Thermal Drone/No GCP Required/Supports all NTRIP/38 Min flight time/360° obstacle avoidance/15KM Video Transmission

€7.199,00 €9.199,00 saving €2.000,00
| /
In Stock - Ships within 24 hrs
  • Autel Robotics Newest Version!
  • Free Gift:Landing pad+Propeller Guard
  • No GCP Required
  • Supports all NTRIP-compatible base stations.
  • Autel Explorer For Mapping
  • Dual Cameras: High-resolution thermal imaging camera & New Sony .8" 50 megapixel RYYB sensor.
  • Multiple Color Palettes
  • Autel Skylink 2.0 15KM Video Transmission
  • Autel Smart Controller V3 7.9''OLED Screen
  • Live Deck 2 Stream Anywhere
  • 38 Min flight time
  • 360° obstacle avoidance
  • Portable and Easy to fly
  • Overview
  • SPECS
  • In the box
  • FAQ
  • Download
  • Autel EVO II Pro RTK V3 Rugged Bundle

    Autel Latest Released EVO II Pro Dual 640T RTK V3 Bundle,integrates an entirely new RTK module for 2023, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable dataacquisition in complex operation environments.

    Autel Explorer for Mapping

    Create Rectangular or Polygon Missions   Non stop turning on corners  Supports Double grid mapping for additional angles

    Multi-NTRIP Profile Saving:For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

    Photo Replication : For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

    Multi-Battery Missions : The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.



    Dual Cameras:Accurate Temperature Measurement

    The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.


    High-Resolution Thermal Imaging Sensor

    Equipped with a 640x512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than the competition with the similar resolution and hardware.

    Precise Temperature Measurement

    The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

    10 Multi Temperature Measurement Modes

    White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

     Picture in Picture Mode

    The thermal drone can do dual situation observation with this picture in picture mode,it can measure the central temperature in the picture ,or measure the pointed spot temperature as you need,even the regional temperature(the max and min temp in the area),and also can set temperature alarm.

     Powerful Infrared Thermal Analysis Tool-IRPC TOOL

     This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

     Zoom in for the Details

    16x Zoom in for the Details: EVO II Pro V3 supports 4x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

     Skylink 2.0 Video Transmission

    The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

    15KM HD video Transmission   QHD Critical details with QHD video within 1km

    2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.



    360° Obstacle Avoidance

    Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.



    Safe and Sturdy

    Deploy Rapidly : The EVO II Pro RTK V3 takes 45 seconds from
    launch to takeoff without fuss.

    27mph Max Wind Resistance, 38 Min Maximum Flight Time

    No Forced Updates : EVO II Pro RTK V3 does not need to be on the latest
    hardware or app version in order to take off.

    Autel Smart Controller V3

    7.9-inch ,2000nit high brightness srceen is clearly visible even under direct sunlight. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

    Broadcast with Live Deck 2

    EVO II Pro RTK V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

    Widely Application

  •  Autel EVO 2 Dual 640T RTK V3 Specs

    • Aircraft
      Weight (With propellers, battery and RTK module) 1250g±0.5g(EVO II Dual 640T RTK V3)
      Max Takeoff Weight
      4.41 lbs+ (1999 g)

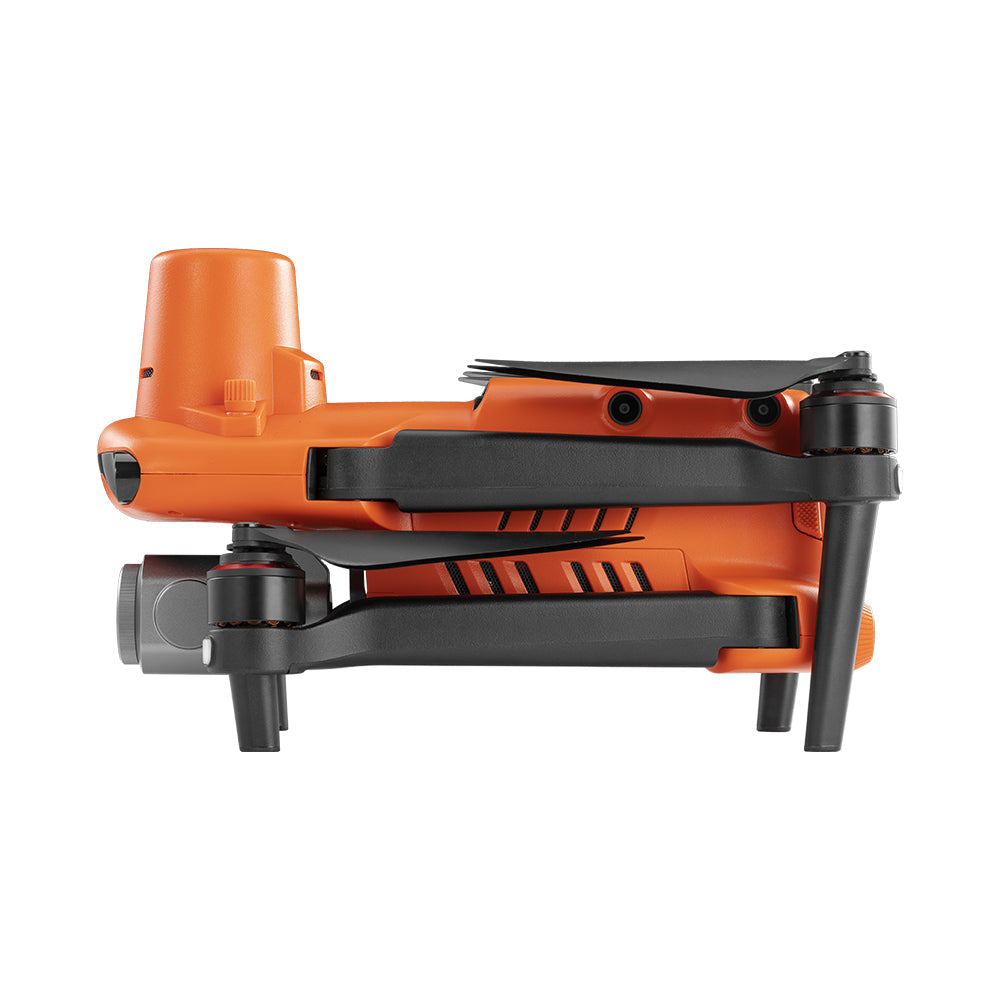

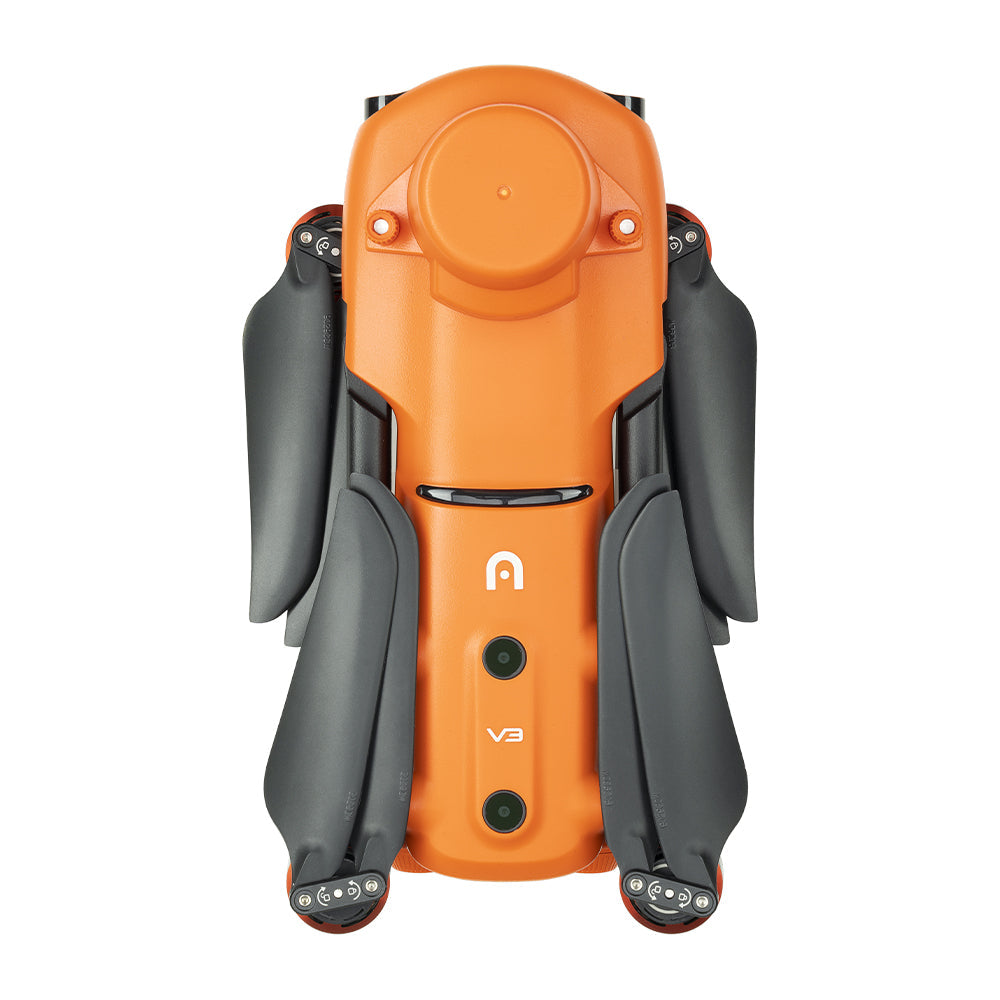

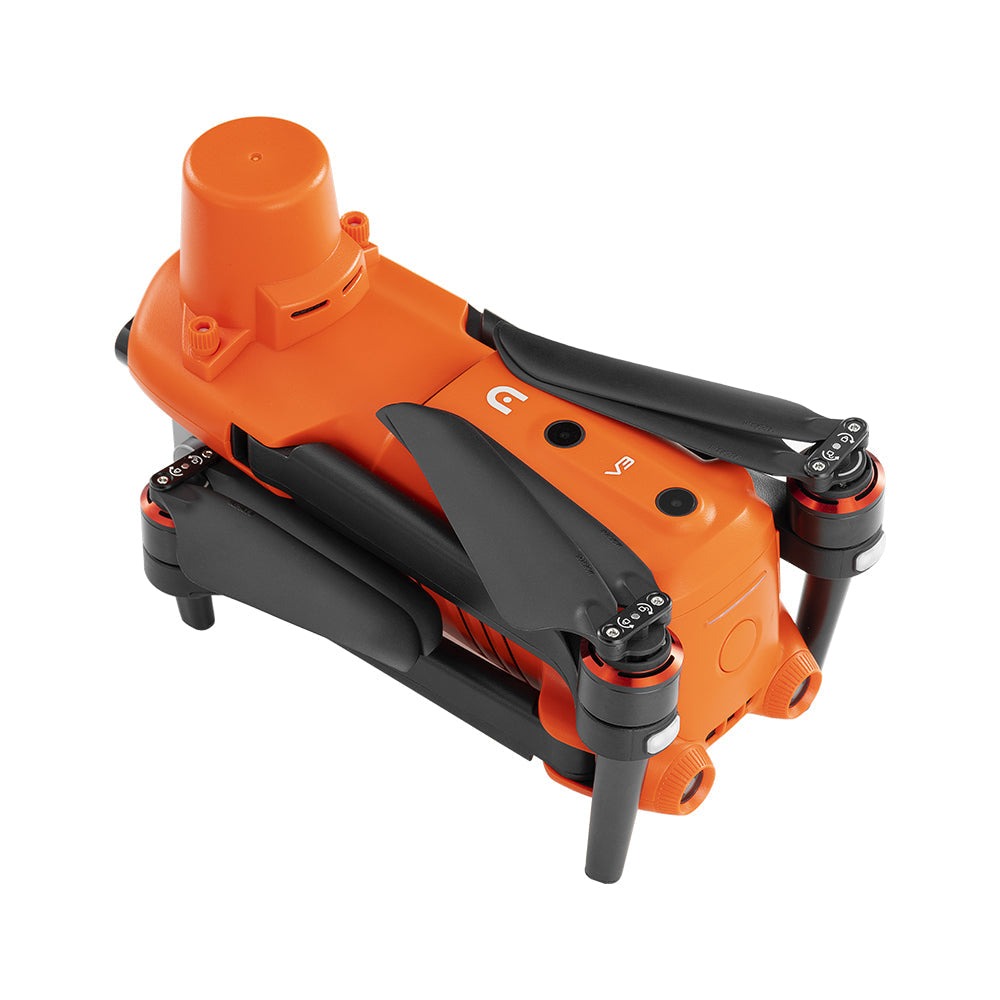

      Size(L*W*H) Folded: 230*130*143mm; 9.1*5.1*5.6 inches

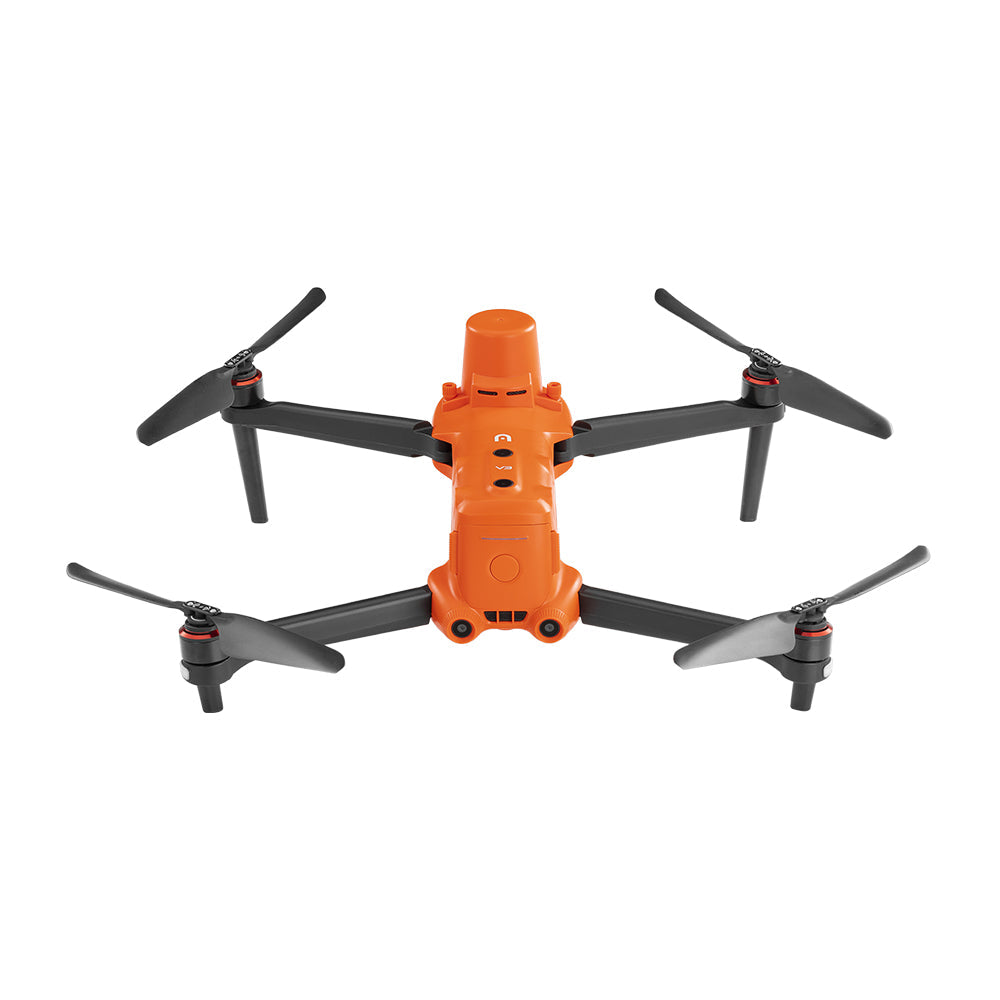

      Unfolded: 457*558*143mm; 18*22*5.6 inches
      Wheelbase 397 mm
      Maximum Service Ceiling Altitude 7000 m
      Max ascent speed 8 m/s (Ludicrous)
      Max descent speed 4 m/s (Ludicrous)
      Max horizontal flight speed 20m/s (Ludicrous)
      Max flight distance (no wind) 21 km
      Max angular velocity 120°/s
      Max tilt angle 33° (Ludicrous)
      Max flight time 36 min
      Max hovering time (no wind) 32 min
      Operating temperature range 14°F to 104°F (-10℃ ~ 40℃)
      Maximum resistance to wind 27mph, 12 m/s (Take-off and landing)
      Operating frequency 902-928MHz (FCC Only)
      2.400-2.4835GHz
      5.725-5.850GHz
      Transmission power(E.I.R.P) 900M
      FCC/ ISED:≤31dBm
      2.4G
      FCC/ ISED:≤32dBm
      SRRC/CE/MIC/RCM:≤20dBm
      5.8G
      FCC/ISED/SRRC/MIC:≤33dBm
      CE/ RCM:≤14dBm
      Hovering accuracy When RTK is enabled and working normally:
      Vertical: ±0.1 m; Horizontal: ±0.1 m
      Vertical: ±0.1 m (when the visual positioning is working normally);
      ±0.5 m (when GNSS works normally)
      Horizontal: ±0.3 m (when the visual positioning is working normally);
      ±1.5 m (when GNSS works normally)
      Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
      Internal storage 8GB
      SD storage max. support 256GB (UHS-3 or Class 10)
    • GNSS
      Single frequency high sensitivity GNSS GPS+BeiDou+Galileo(Asia)
      GPS+GLONASS+Galileo(Other areas)
      Multi-frequency multi-system high-precision RTK GNSS Frequency points used:
      GPS:L1/L2;
      GLONASS:L1/L2;
      BeiDou:B1/B2;
      Galileo:E1/E5
      First positioning time:<50 s
      Positioning accuracy:
      vertical 1.5 cm + 1 ppm (RMS);
      Horizontal 1 cm + 1 ppm (RMS)
      1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves


    • Gimbal
      Gimbal 3-axis stabilization
      Mechanical range Tilt: -135° to +45°;
      Pan: -100° to +100°
      Controllable rotation range Tilt: -90° to +30°;
      Pan: -90° to +90°
      Max control speed (Tilt) 300°/s
      Angular Vibration Range ±0.005°
    • Remote controller and image transmission
      Operating frequency 902-928MHz (FCC Only)
      2.400-2.4835GHz
      5.725-5.850GHz
      Transmission power(E.I.R.P) FCC:≤33dBm
      CE:≤20dBm@2.4G,≤14dBm@5.8G
      SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G
      Max Transmission Distance (unobstructed, free of interference) FCC:9.3 miles (15 km)
      CE:5 miles (8km)
      Display screen 2048x1536 60fps
      Battery 5800mAh
      Operating time ~3 hours (Max. Brightness)
      ~4.5 hours (50% Brightness)
      Charging time 120 minutes
      Internal Storage ROM 128GB
    • Sensing system
      Sensing system type Omnidirectional sensing system
      Forward Accurate measurement range: 0.5-18 m
      Effective sensing speed:<12m/s
      Viewing angle: Horizontal: 60°, Vertical: 80°
      Backward Accurate measurement range: 0.5-16 m
      Effective sensing speed:<12m/s
      Viewing angle: Horizontal: 60°, Vertical: 80°
      Upward Accurate measurement range: 0.5-10 m
      Effective sensing speed:<5m/s
      Viewing angle: Horizontal: 65°, Vertical: 50°
      Downward Accurate measurement range: 0.5-10 m
      Effective sensing speed:<5m/s
      Viewing angle: horizontal: 100°, vertical: 80°
      Left and right Accurate measurement range: 0.5-10 m
      Effective sensing speed:<5m/s
      Viewing angle: horizontal: 65°, vertical: 50°
      Operating Environment Forward, Backward and Sides:
      Surface with clear pattern and adequate lighting (lux > 15)
      Upward:
      Detects diffuse reflective surfaces (>20%)
      (walls, trees, people, etc.)
      Downward:
      Surface with clear pattern and adequate lighting (lux > 15)
      Detects diffuse reflective surfaces (>20%)
      (walls, trees, people, etc.)


    • EVO II Dual 640T RTK thermal camera
      Sensor Uncooled VOx Microbolometer
      Lens FOV H33°V26°
      Focal length 13mm
      Zoom 1-16x
      Pixel size 12μm
      Wavelength range 8 - 14μm
      Temperature range High gain mode: -20° to +150°
      Low gain mode: 0° to +550°
      Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
      @Environmental temperature-20℃~60℃
      Accurate temperature
      measurement distance
      2-20 meters
      Video resolution 640x512@25fps
      Video format MOV / MP4 (Support H.264/H.265)
      Camera resolution Infrared mode: 640*512
      Picture-in-picture mode: 1920*1080, 1280*720
      Photo mode Single shot
      Burst shooting: 3/5 frames, 3 is the default
      Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
      Photo format JPG (with irg file)
    • EVO II Dual 640T RTK V3 visual camera
      Sensor 1/1.28"(0.8") CMOS; 50M effective pixels
      Lens FOV: 85°
      35 mm format equivalent focal length: 23 mm
      Aperture: f/1.9
      Focus range: 0.5 m to infinity (with auto focus)
      ISO range Video: 100-64000
      Photo: 100-6400
      Shutter speed Photo mode: 1/8000 ~ 8s
      Other: 1/8000 ~ 1/frame rates
      Zoom 1-16x (up to 4x lossless zoom)
      Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
      Maximum photo size 8192*6144(4:3)
      4096*3072(4:3)
      3840x2160(16:9)
      Image Format JPG (default) / DNG / JPG+DNG
      Video format MOV / MP4
      Video resolution 3840x2160P60/P50/P48/P30/P25/P24
      2720x1528P60/P50/P48/P30/P25/P24
      1920x1080P60/P50/P48/P30/P25/P24
      Max bitrate 80Mbps
      Supported file system FAT32/exFAT
    • Battery
      Capacity 7100 mAh
      Voltage 11.55 V
      Battery type LiPo 3S
      Energy 82 Wh
      Weight 365 g
      Charging temperature range 5℃ to 45℃
      Storage temperature and humidity -10~30℃,65±20%RH
      Recommended storage temperature 22-28℃
      Max charging power 93W
      Charging time 90 minutes
    • Charger
      Input 100-240 V, 50/60 Hz, 1.5A
      Output 13.2 V ⎓ 5 A
      5V⎓3A 9V⎓2A 12V⎓1.5A
      Voltage 13.2±0.1V
      Rated power 66W
    • Multi-Charger
      Voltage 13.2 V
      Charging temperature range 5℃ to 45℃

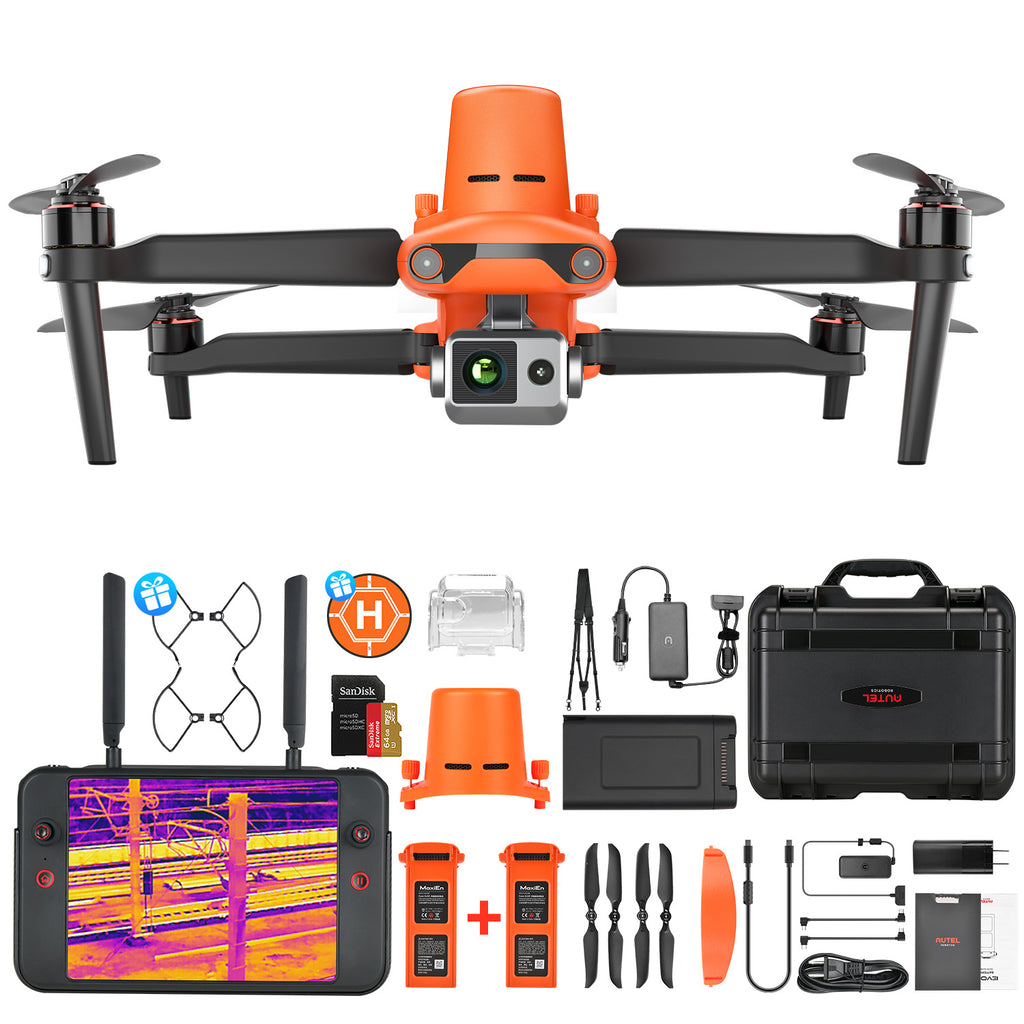

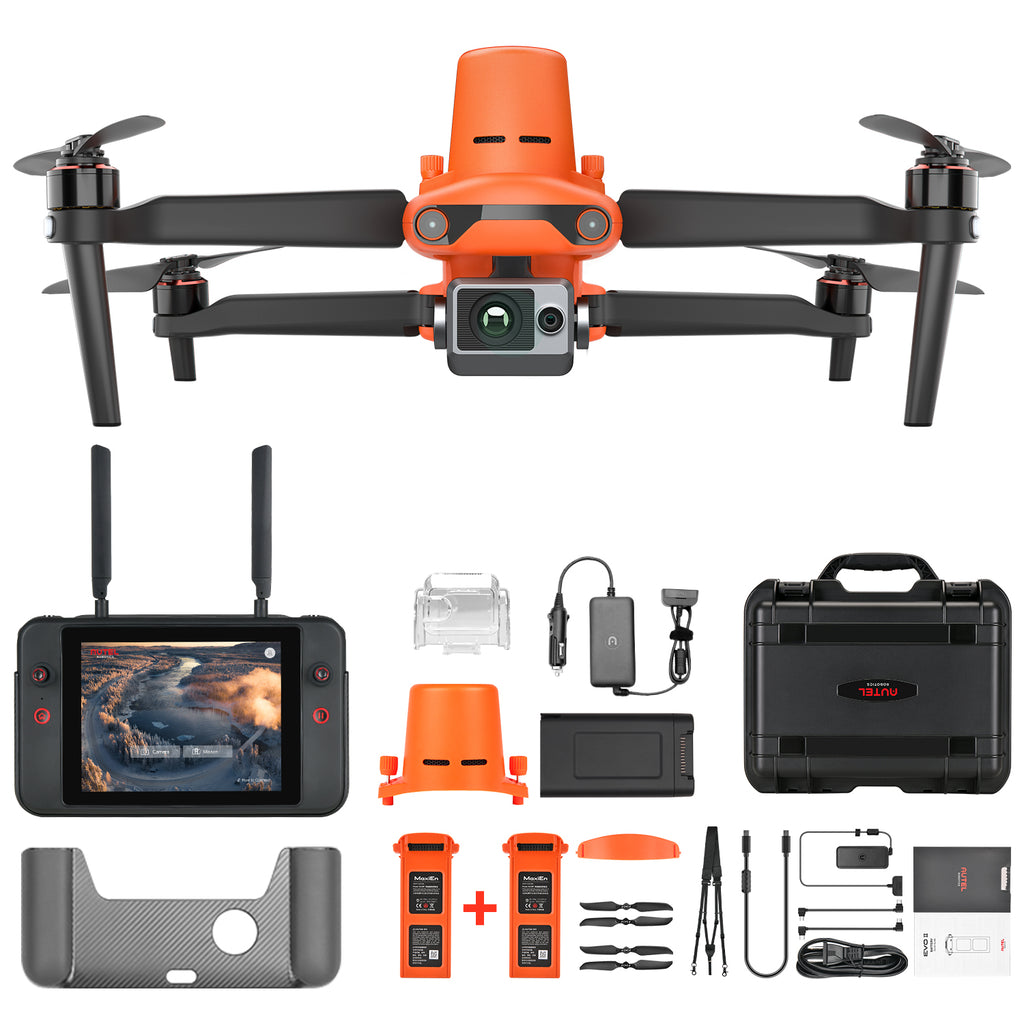

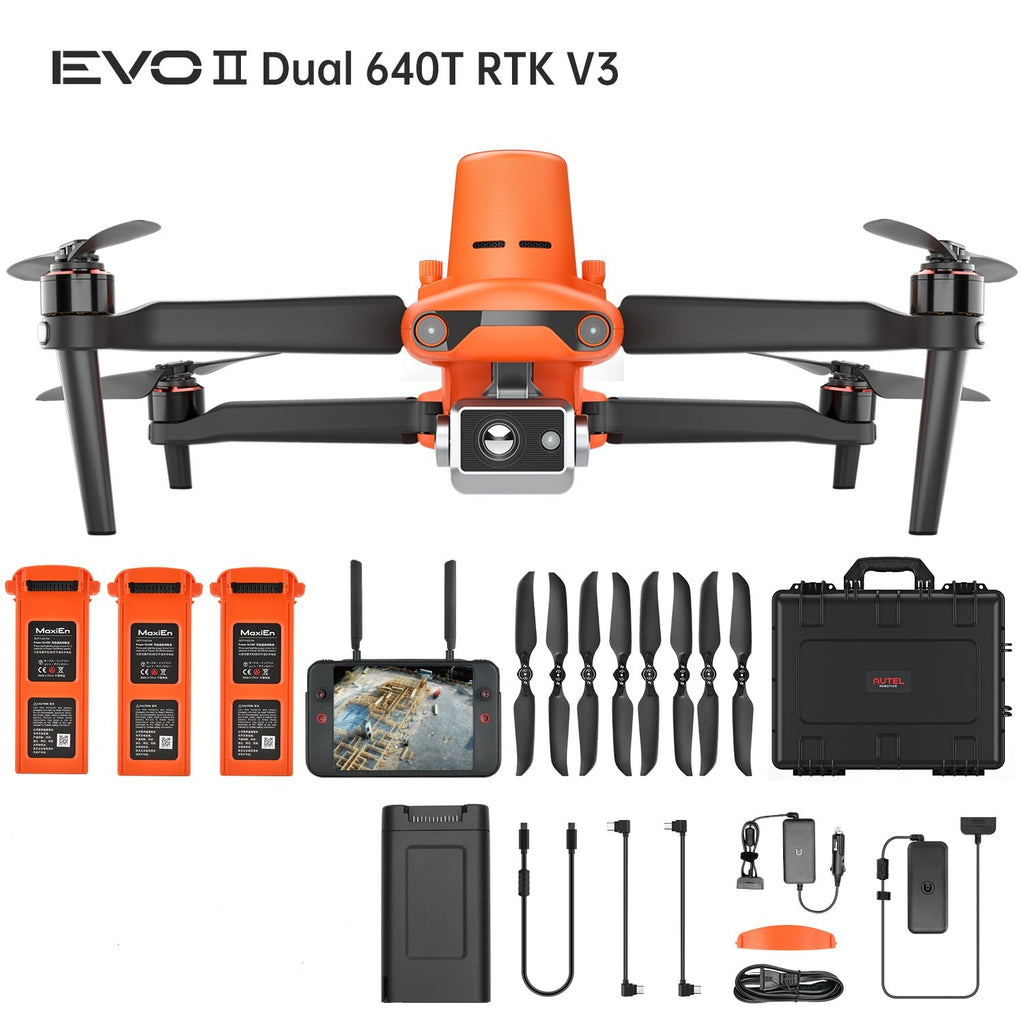

  • What's Included?

    - EVO II Dual 640T RTK V3 Bundle -

    • Aircraft *1( (Battery, propeller, gimbal cover, 32G SD card included)
    • Remote Controller*1
    • Spare Propellers*2 pair
    • Spare Battery*2
    • Battery Charger+Power Cable*1
    • Car Charger*1
    • Multi-Charger*1
    • RC Charger *1
    • RC Charging Cable*1
    • Spare Control Stick (pair)*1
    • RC Protective Case*1
    • RC Lanyard*1
    • Extended Port Cover*1

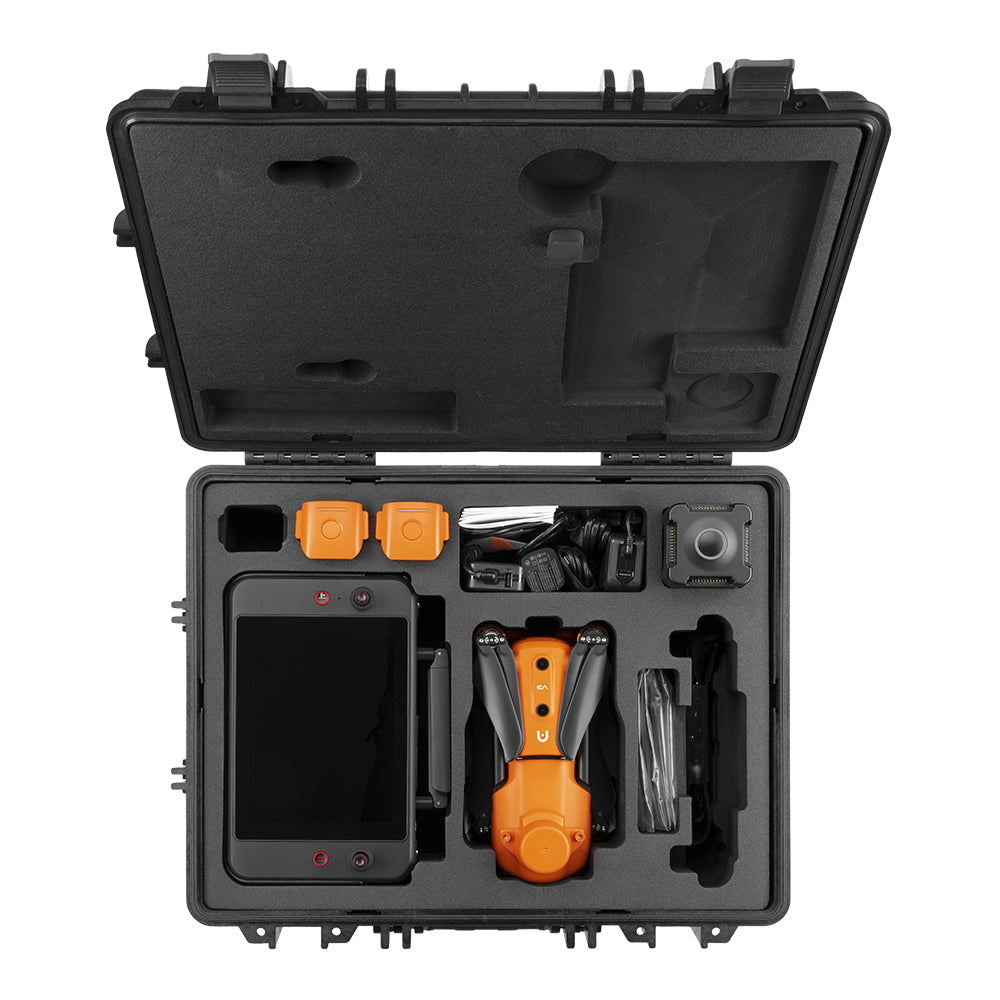

    • Protector Case*1
    • Quick Guide

  • EVO II Pro RTK V3 FAQ

    Q: What is the RTK positioning accuracy?
    A:1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

    Q: Which RTK base station modes are currently supported?
    A: The A-RTK base station is currently supported.

    Q: Is the gimbal replaceable?
    A: Yes. The product adopts a modular design, allowing for the payload to be replaced as needed.

    Q: How long does it take to fully charge the battery?
    A: It takes about 90 minutes to fully charge each battery.

  • Autel Explorer

    Unlock your drone's potential with the Autel Explorer App. With the app, you can easily control the EVO I, EVO II Pro, EVO II Dual, and EVO II Enterprise Series. Your mobile device will act as a central display (HD Live View) for aerial photography, cinematography, and flight parameter adjustments. Perform advanced autonomy features such as dynamic track, tripod track, parallel track, gesture control, precision flight, dual stability, and mission planning. (Some features are only available on the EVO II Series).
