Autel Robotics EVO MAX 4N with Starlight Camera丨A-Mesh 1.0丨Anti Jam-Anti Interference丨640x512 Thermal Camera/Wide Camera/Laser Rangefinder丨42 mins Max. Flight Time

€12.999,00
| /

  • "N"--Explore the Night--Starlight Camera
  • A Leader of Drone Intelligence
  • A-Mesh 1.0 - The Drone Industry's First Mesh Networking Technology
  • No Blind Spots-Ultimate Obstacle Avoidance
  • Anti Jam-Anti Interference
  • 42 mins Max. Flight Time/27 mph* Max. Wind Resistance
  • Autel SkyLink 3.0
  • Payload:Starlight Camera/ 50MP Wide Camera/640x512 Thermal Camera/Laser Rangefinder
  • Smart Features:3D Map Planning/Quick Mission/Mission Reproduction
  • Overview
  • SPECS
  • In the box
  • FAQ
  • Download

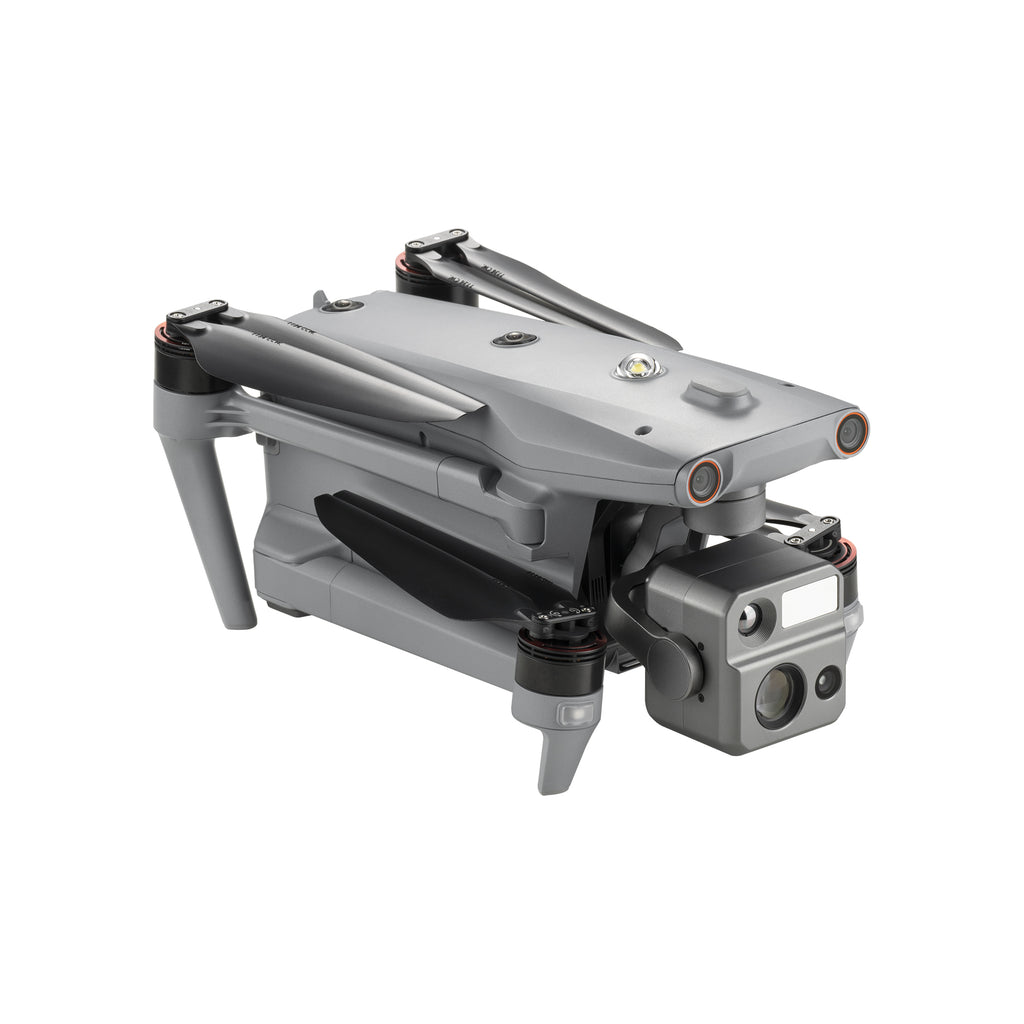

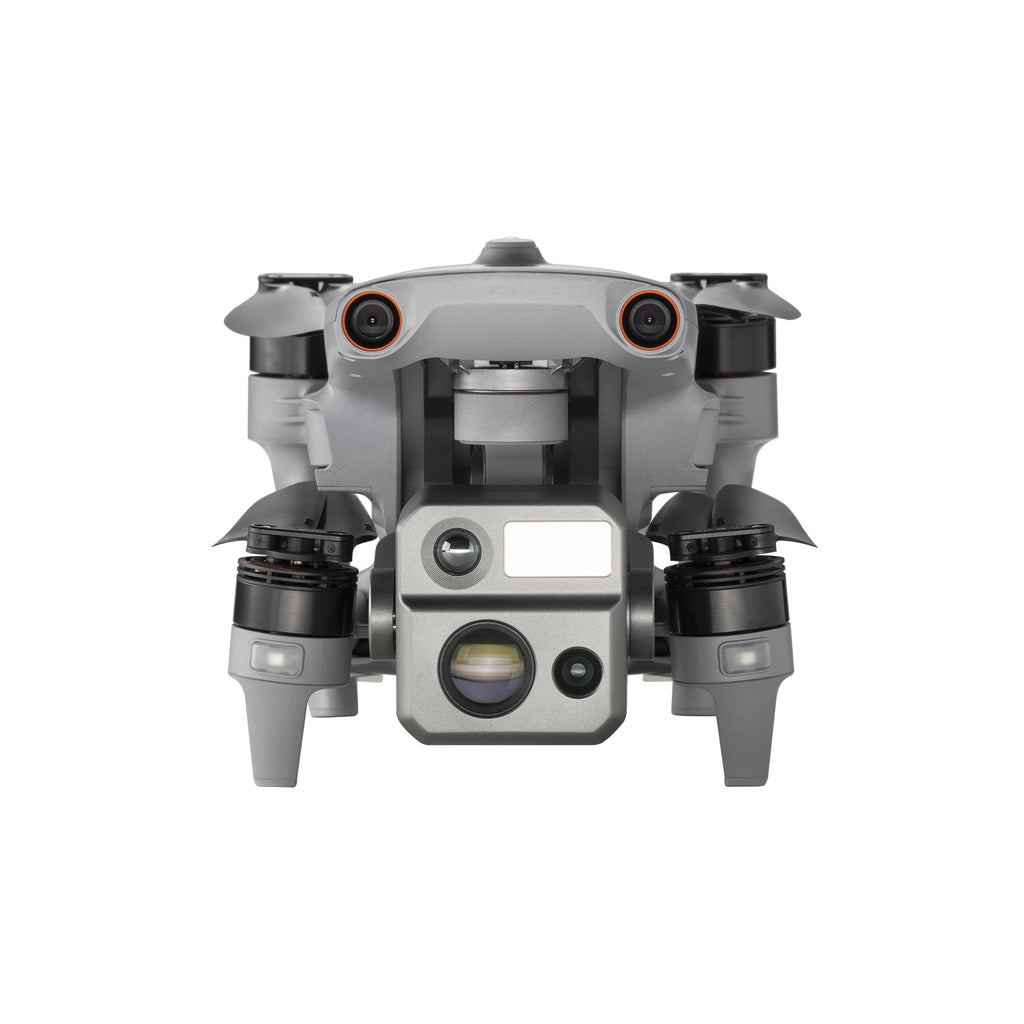

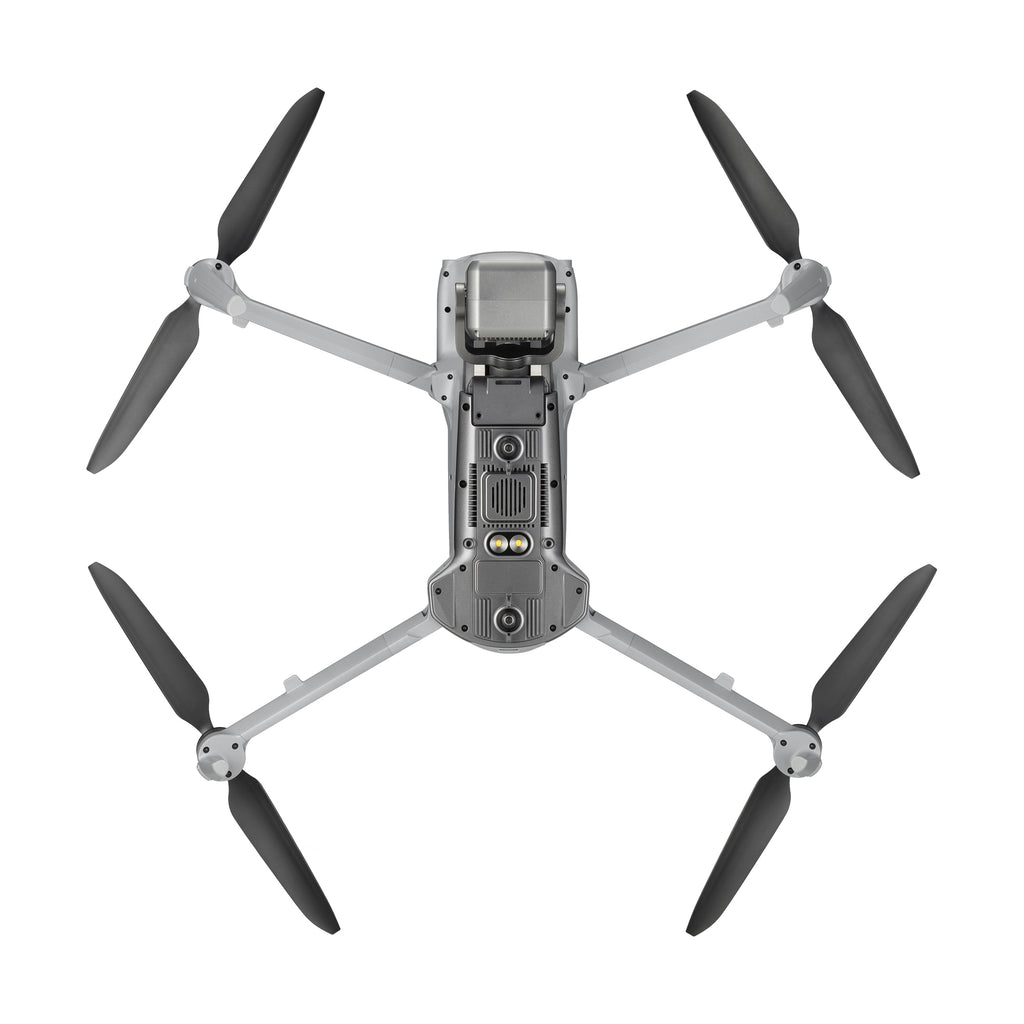

  • Autel EVO MAX 4N

    EVO MAX 4N --A Leader of Drone Intelligence

    The EVO Max 4N brings powerful technologies and advanced autonomy to users. EVO Max 4N assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4N is as portable as it is capable.

    Autonomous Path Finding:Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

    Navigation in GPS Denied Environment: Advanced sensors allow the EVO Max 4N to navigate within hardened structures, underground, or in environments without GPS.

    Accurate Object Identification and Tracking : Based on Autel's AI recognition technology, the EVO Max 4N can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

    No Blind Spots-Ultimate Obstacle Avoidance

    EVO Max 4N is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4N's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

    Anti Jam-Anti Interference

    The EVO Max 4N uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4N to fly confidently near power lines, critical structures, and in complex areas.

    Weather Rating-IP43

    A-Mesh 1.0 - The Drone Industry's First Mesh Networking Technology

    EVO Max 4N features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

    Strong Anti-Interference: The EVO Max 4N can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

    Beyond-Line-of-Sight Applications: With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness

    Full-Fleet Control:Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

    Enhanced Range: Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

    Autel SkyLink 3.0

    The EVO Max 4N SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.

    12.4 miles: Image Transmission Distance  1080p/60fps: Real-Time Image Quality

    900MHz/2.4GHz/5.2GHz/5.8GHz** : Frequency Bands  <150ms Latency

    Mission Ready Payload

    The payload integrates starlight camera,wide-angle camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.

    Starlight Camera: Explore the Night, 2.3MP
    LUX: 0.0001, ISO: 450000
    Equivalent: 41.4 mm

     Wide Camera: 50MP   1/1.28" CMOS  Aperture: f/1.9  DFVO: 85° Equivalent: 23 mm

    Thermal Camera: 640x512 Aperture: 13mm  16x Digital Zoom

    Temperature Measurement Range: -20°C to 550°C

    Laser Rangefinder: Measuring Range: 5 - 1200m
    Measurement Accuracy: +1m

    Autel Enterprise App Platform

    The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4N's mission capability.

    Smart Features

    3D Map Planning: Plan, create, and execute 3D waypoint mission plan on a 3D map.

    Quick Mission: Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

    Mission Reproduction: With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4N will automatically record the camera angles and replicate the mission you just flew.

    Multiple Mission Types

    The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

    Terrain Follow: Maintain relatively constant altitude from the ground for uneven or sloped terrain.

    Rectangular Mission: One-click automatic generation of a rectangular flight area.



    Automatic Mission Generation And Data Capture:Automatically produce routes by adding regional boundary points through dots or importing KML files. Waypoint Missions :Users can add waypointsfor flexible, non-structured flight paths.



    Oblique Photography:Automatically plan 5 groups of routes (1 ortho + 4  oblique) according to the flight area set by the user.                                       Spiral Mission:Supports helical flight search in a designated area for SAR.



    Vertical Scan:Perform vertical surveys for building facades, open pit walls, and towers. Corridor Mission:Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

    Data Security

    Privacy Protection: Data involving user and aircraft information, including flight logs, locations,and account information can only be physically accessed via the aircraft locally.

    Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.

    Enhanced Live-View

    Multi-channel Projection Screen:Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.

    AR Scene:Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.

    Autel SDK

    The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.(Note: Only mobile SDK is availbel at this moment,other 2 not released yet)

     Widely Application


  •  Autel EVO MAX 4N Specs

      • Aircraft
        Weight 3.5 lbs (1600g, battery and gimbal included)
        Max. Takeoff Weight
        4.41 lbs (1999 g)

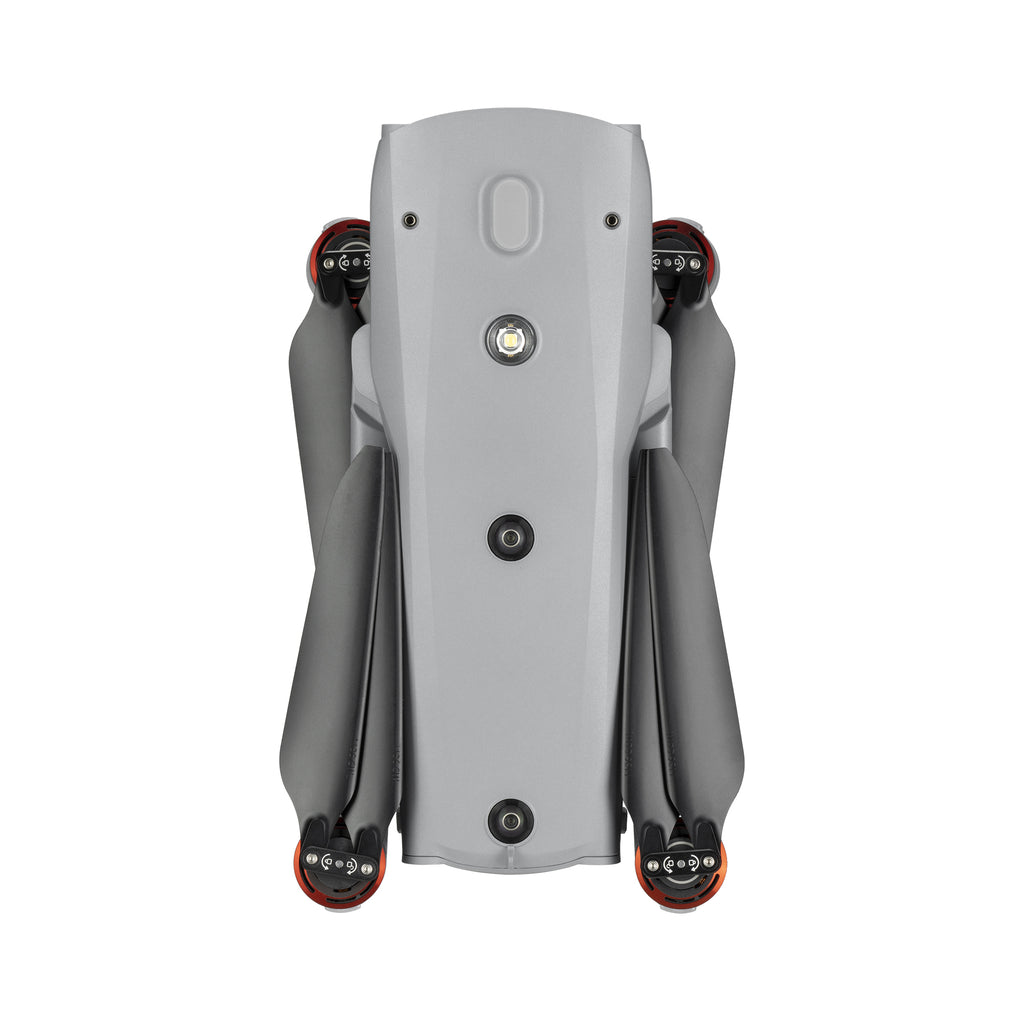

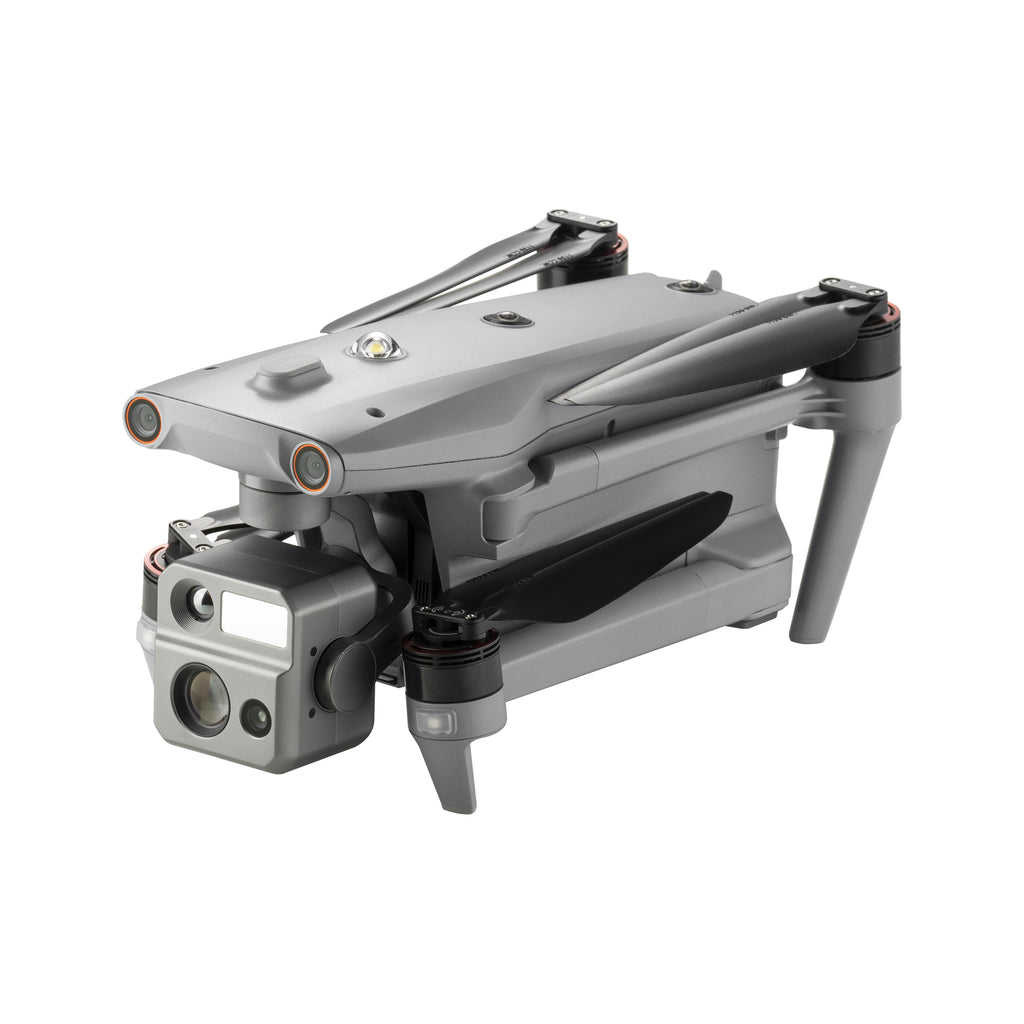

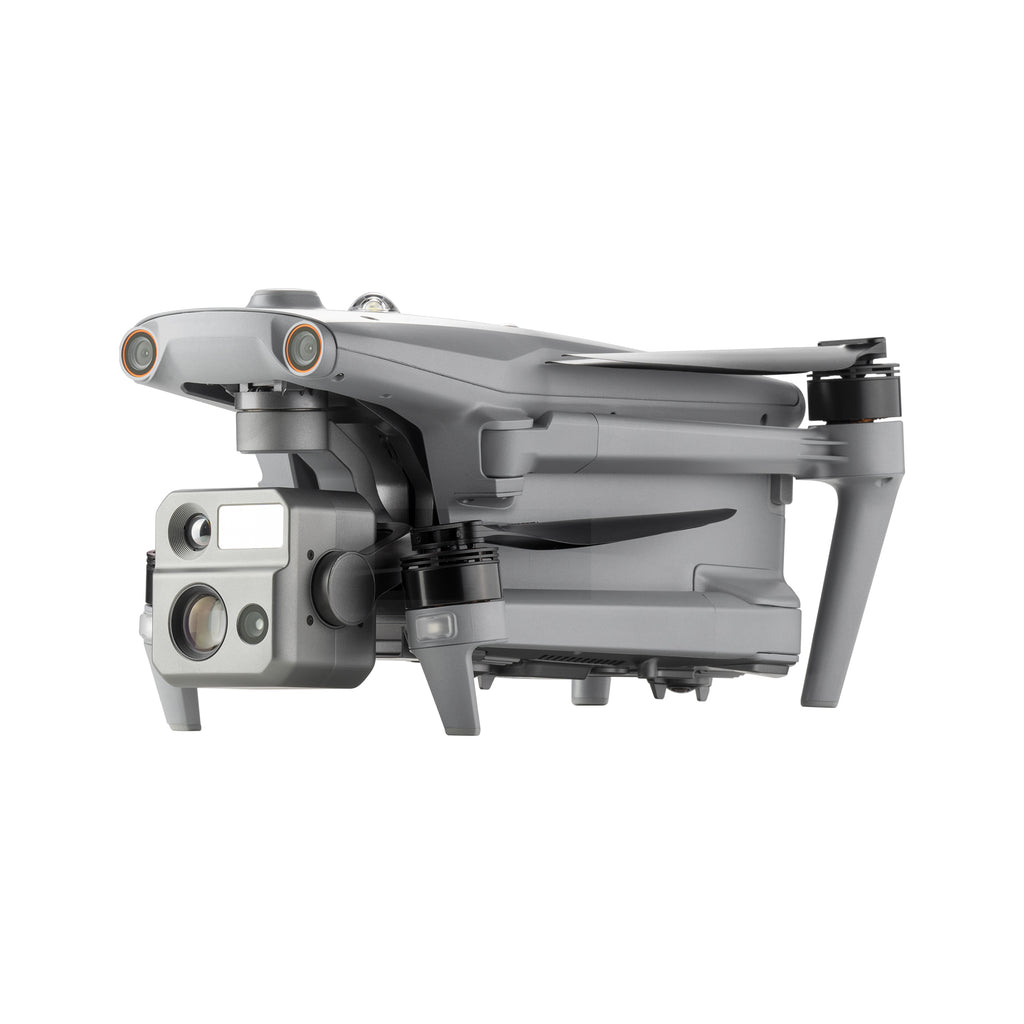

        Dimensions 576*660*149 mm (folded, incl. propellers)
        340*407*148 mm (folded, excl. propellers)
        257*136*133 mm (unfolded, excl. propellers)
        Diagonal Wheelbase 1.52 ft (464mm)
        Max Ascent Speed 8m/s
        Max Descent Speed 6m/s
        Max Horizontal Speed (windless near sea level) 23m/s
        *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.
        Max Service Ceiling Above Sea Level 23000ft (7000m)
        Max Flight Time (windless) 42 mins
        Max Hovering Time (windless) 38 mins
        Max Wind Resistance 27mph*
        *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
        IP Rating IP43
        Max Tilt Angle 35°
        Max Angular Velocity Pitch: 300°/s; Yaw: 120°/s
        Operating Temperature -4°F to 122°F (-20℃ - 50℃)
        Operating Frequency 2.4G/5.2G*/5.8G/900MHz*
        GNSS
        GPS+Galileo+BeiDou+GLONASS
        Transmitter Power (EIRP) 2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC)
        5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
        5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
        5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
        Hovering Accuracy Vertical:
        ±0.1 m (Vision System enabled);
        ±0.3 m (GPS enabled);
        ±0.15 m (RTK enabled);
        Horizontal:
        ±0.15 m (Vision System enabled);
        ±0.3 m (GPS enabled);
        ±0.1 m (RTK enabled);
      • Gimbal
        Mechanical Range Pan: -135° to 45°
        Tilt: -45° to 45°
        Roll: -45° to 45°
        Controllable Range -90° to 30°
        Stable system 3-axis mechanical gimbal (pan, tilt, roll)
        Max Control Speed (pitch) 200º/s
        Angular Vibration Range <0.005°
      • Zoom Camera (Telephoto)
        Sensor 1/2" CMOS, Effective pixels: 48M
        Lens Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm)
        Aperture: f/2.8-f/4.8
        Exposure Compensation ±3EV 0.3EV/step
        ISO Range Normal Mode:
        Auto: ISO100 ~ ISO6400
        Manual:
        Photo: ISO100 ~ ISO12800
        Video: ISO100 ~ ISO6400
        Shutter Speed Photo: 8s ~ 1/8000s
        Video: 1s ~ 1/8000s
        Max Photo Size 8000×6000
        Max Video Resolution 7680×4320
      • Wide Camera
        Sensor 1/1.28 CMOS, Effective pixels: 50M
        Lens DFOV: 85°
        Focal length: 4.5 mm (equivalent: 23 mm)
        Aperture: f/1.9
        AF motor: 8-wire SMA, PDAF focus
        Exposure Compensation ±3EV 0.3EV/step
        ISO Range Auto:
        Photo: ISO100~ISO6400
        Video: ISO100~ISO64000 (Night scene mode: up to ISO64000)
        Manual:
        Photo: ISO100~ISO12800
        Video: ISO100~ISO6400
        Shutter Speed Photo: 8s ~ 1/8000s
        Video: 1s ~ 1/8000s
        Max. Video Resolution 3840×2160
        Photo Size 8192*6144
        4096*3072
      • Thermal Camera
        Thermal Imager Uncooled VOx Microbolometer
        Lens DFOV: 42° IFOV: 0.92mrad
        Aperture: 13mm
        Focus: f/1.2
        Infrared Temperature Measurement
        Accuracy
        26.6~37.4 ℉ or reading ±3% (using
        the larger value) @ambient
        temperature -4℉ to 140℉
        Video Resolution 640*512
        Photo Size 640*512
        Pixel Pitch 12 um
        Temperature Measurement Method Center measurement, pot measurement, rectangular measurement
        Temperature Measurement Range -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
        Temperature Alert High and low temperature alarm thresholds, reporting coordinates and temperature values
      • Laser Range Finder
        Measurement Accuracy ±3.3ft (1m)
        Measuring Range 3937ft (1200m)
      • Image Transmission
        Operating Frequency 2.4G/5.2G*/5.8G/900MHz*
        *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
        Max Transmission Distance
        (unobstructed, free of interference)
        12.4 miles/20km (FCC), 4.9 miles/8km (CE)
        Independent Networking Autel Smart Controller V3
        Transmitter Power (EIRP) 2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC)
        5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
        5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
        5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
      • Autonomy
        Non-GPS Hovering and Manual Flight Indoor: Horizontal error ≤1.18in (At least have texture at one direction)
        Outdoor:
        Daytime: Within 1640ft (500m) flight height, horizontal error < 0.01*height
        Night: Manual flight is controllable within 328ft (100m) flight height
        Non-GPS Return-to-Home Within 1640ft (500m) flight height, horizontal error of Return-to-Home point < 11.81in
        Automatic Obstacle Rerouting High Speed Obstacle Rerouting: Flight speed up to 45mph (20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m)
        High Precision Obstacle Rerouting: Flight speed could reach 6.7mph (3m/s) when Min. safety distance to obstacle is 1.64ft (0.5m)
        Multi-target Recognition and Tracking Target identification types: people, vehicles, boats
        Number of targets detected: 64
        Comprehensive recognition accuracy: > 85%
      • Millimeter-wave Radar Sensing System
        Frequency 60Ghz~64Ghz*
        *Please fly safely and consult your local laws and regulations.
        Size 1.5*0.55*0.08 in (38*14*2mm) (L*W*H)
        Weight 0.07oz (2g)
        EIRP 18dBm
        Sensing Range
        Upward: 5.9~787.4in (0.15~20m)
        Downward: 3.9~4724.4in(0.1~120m)
        Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m)
        Forward and Backward(Ludicrous): 1.64~196.85ft (0.5~60m)
         FOV
        Horizontal(6dB):±60°,Vertical(6dB):±30°
        Speed Measurement Range
        ± 134mph (60m/s)
        Speed Measurement Accuracy ≤1%
        Max. Target Detection Number 32
      • Visual Sensing System
        Obstacle Sensing Range Forward/Upward/Downward/Backward/Sideward: 0.2~50m
        FOV Forward/Backward/Sideward: 60°(H),80°(V)
        Upward/Downward: 360°(H),190°(V)
      • Autel Smart Controller V3
        Screen 7.9 inch, 2000nits max. brightness, 2048*1536 resolution
        External Battery Capacity: 5800mAh
        Voltage: 11.55V
        Battery Type: Li-on
        Energy: 67Wh
        Charing time: 120mins
        Intelligent Lithium Ion Battery
        Operating Time 3 hours (Max. brightness)
        4.5 hours (50% brightness)
        Max Transmission Distance
        (with interference)
        12.4 miles/20km (FCC), 4.9 miles/8km (CE)
        IP Rating IP43
        Storage 128G
        GNSS GPS+GLONASS+Galileo+Beidou+NavIC+QZSS
        Operating Temperature -4°F to 104°F (-20℃ to 40℃)
        Wi-Fi Protocol WiFi Direct, Wi-Fi Display,
        802.11a/b/g/n/ac
        Support 2 x 2 MIMO Wi-Fi
        Operating Frequency 2.400 - 2.4835 GHz;
        5.150 - 5.250GHz;
        5.725 ‒ 5.850 GHz
        Transmitter Power (EIRP) 2.400 - 2.4835 GHz
        FCC/CE:≤20dBm
        5.150 - 5.250GHz
        FCC:≤17dBm
        5.725 ‒ 5.850 GHz
        FCC:≤17dBm
        CE:≤14dBm
      • Aircraft Battery
        Capacity 8070mAh
        Voltage 14.88V
        Battery Type LiPo 4S
        Energy 120wh
        Net Weight 1.15 lbs (520g)
        Charging Temperature 41° F to 113° F (5ºC to 45ºC) When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in
        a low temperature may shorten the lifetime of the battery.
        Hot Swap Support

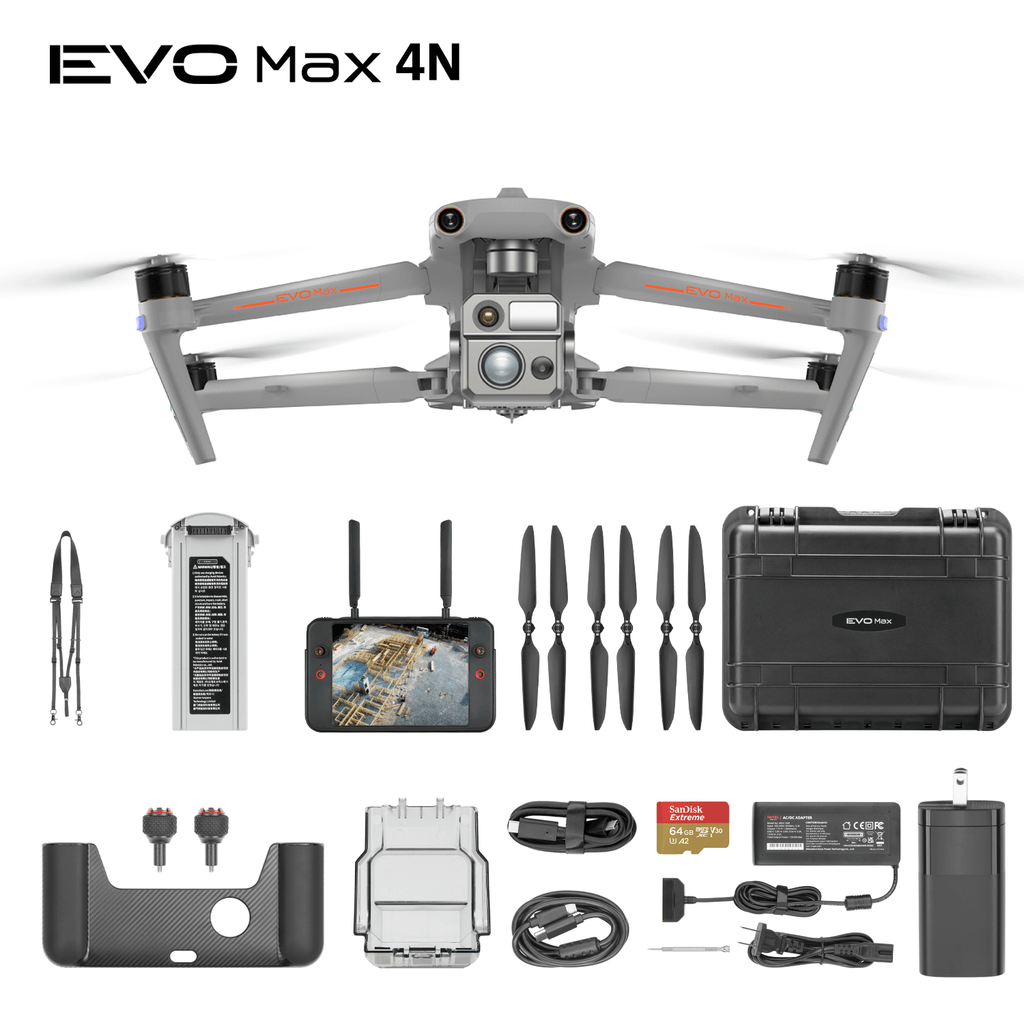

  • What's Included?

    - EVO MAX 4N -

    • Aircraft *1( (Battery, propeller, gimbal,gimbal cover, 64G SD card included)
    • Battery Charger + Power Cable *1
    • Spare Propeller (pair)*1
    • 1 screwdriver*1
    • Smart Controller V3(sticks included)*1
    • Smart Controller Lanyard*1
    • Smart Controller Cover *1
    • Smart Controller Spare Joystick*1pair
    • RC Charger*1
    • RC Charging Cable *1
    • Data Cable*1
    • Manuals*1
    • Rugged Case*1
