Autel Robotics EVO II Dual 640T V3 Drone
Autel EVO 2 Dual 640T V3 thermal drone is an industry-first drone combining infrared imaging camera with 8K video camera. With thermal resolution up to 640x512 and an 8k sensor EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.
In addition to the Dual camera, the EVO II Dual 640T V3 can accurately detect heat sources within a distance of 2-15 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T can regulate temperature deviations within 3 degrees Celsius.
640x512 25Hz New Thermal Imaging Sensor
Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware.
DRI Ranges: See a specific subject's identity, activity, or personal items from long distance
• Detection：Detect if an object is present.
• Recognition：See what type of object it is (i.e. person, vehicle, airplane).
• Identification：Determine subject affiliation and intent.
Multiple Temperature Measurement Modes
Central temperature measurement: View real-time display of the temperature in the center area of the screen.
Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time.
Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold.
Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified.
10 Thermal Color Palettes: White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection
Picture-in-Picture Display Mode: Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.
Powerful Infrared Thermal Analysis Tool-IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
50MP Ultra-Sensitive Camera
The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.
0.8" Sensor Size—The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.
RYYB Sensor Technology—RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
PDAF+CDAF Autofocus System—Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
4K HDR For Greater Dynamic Range—4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
Powerful Telephone Zoom
Get The Full Scene，The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.
360° Obstacle Avoidance
Omnidirectional Obstacle Avoidance With 12 Visual Sensors
Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T V3 can easily build three-dimensional maps and plan paths through complex terrain in real-time.
Dynamic Track 2.0
The EVO II Dual 640T V3 can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Industry Leading Performance
38minutes Maximum Flight Time
45mph (20m/s) Maximum Flight Speed
27mph (12m/s) Maximum Wind Resistance
2lbs (920g) Maximum Lift Capability
Modular Design - Unlimited Expansion
Modular Design - Unlimited expansion,with V3 logo on the drone.
Deploy Rapidly - The EVO II 640T V3 can go from its case to the air in 45 seconds.
No Forced Updates - EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.(It’s required to update the latest firmware and app to enjoy comprehensive warranty)
Broadcast with Live Deck 2
Live Video Streaming - The EVO II Pro Dual 640T V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.
1080P/60FPS 7.5 Miles Transmission Range
IP43 Resistance Three Auto-Switch Bands
SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities for your most critical workflows.
9+ Miles—Do more because you can fly further away.
QHD—Incredible video resolution within a mile, meeting most common use cases.
2.4GHz / 5.8GHz—Support tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
Autel Smart Controller V3
EVO II Dual 640T V3 upgraded with Smart Controller V3,7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight.The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
Widely Application
Security : Perform overwatch, conduct forensics, accident reconstruction and crowd monitoring.
Line Inspections : Reduce costs, increase safety, and improve inspection workflow.
Firefighting: Locate hotspots, provide overwatch, and shorten response times.
Search & Rescue: Identify subjects, reduce response times, and optimize search area with mission planning.
Wildlife Hunting: Hunters can locate and track prey easily,making a successful catch.
-
EVO II Dual 640T Specs
-
Aircraft
Takeoff weight 1150 g Max takeoff weight 2000 g Size(L*W*H) 230*130*108mm（folded）
457*558*108mm（unfolded）Wheelbase 397 mm Maximum service ceiling altitude 7000 m Max ascent speed 8 m/s (Ludicrous) Max descent speed 4 m/s (Ludicrous) Max horizontal flight speed 20m/s (Ludicrous) Max flight distance (no wind) 22 km Max angular velocity 120°/s Max tilt angle 33° (Ludicrous) Max flight time (no wind) 38 min Max hovering time (no wind) 33 min Operating temperature range -10℃ ~ 40℃ Maximum resistance to wind 12 m/s (Take-off and landing) Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power 900M
FCC/ ISED：≤31dBm
2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBmHovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally)GNSS GPS/Beidou/Glonass/Gallieo Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) -
Gimbal
Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max control speed (Tilt) 300°/s Angular Vibration Range ±0.005° -
Remote controller and image transmission
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7GMax Transmission Distance (unobstructed, free of interference) FCC：15km
CE：8kmDisplay screen 2048x1536 60fps Battery 5800mAh Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)Charging time 120 minutes Internal Storage ROM 128GB -
Sensing system
Sensing system type Omnidirectional sensing system Forward Accurate measurement range: 0.5-18 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Backward Accurate measurement range: 0.5-16 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Upward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°Downward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 100°, vertical: 80°Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 65°, vertical: 50°Operating Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) -
Thermal camera
Sensor Uncooled VOx Microbolometer Lens FOV H33°V26°
Focal length 13mmZoom 1 - 16x Pixel size 12μm Wavelength range 8 - 14μm Temperature range High gain mode: -20° to +150°
Low gain mode: 0° to +550°Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃Accurate temperature
measurement distance2-20 meters Video resolution 640x512@30fps Video format MOV / MP4 (Support H.264/H.265) Camera resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720Photo mode Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60sPhoto format JPG (with irg file) -
Visible light camera
Sensor 1/1.28"(0.8") CMOS; 50M effective pixels Lens FOV: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus range: 0.5 m to infinity (with auto focus)ISO range Video: 100-64000
Photo: 100-6400Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1-16x (up to 4x lossless zoom) Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging Maximum photo size 8192*6144（4:3）
4096*3072（4:3）
3840x2160（16:9）Image Format JPG (default) / DNG / JPG+DNG Video format MOV / MP4 Video resolution 3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Max bitrate 120Mbps Supported file system FAT32/exFAT -
Battery
Capacity 7100 mAh Voltage 11.55 V Battery type LiPo 3S Energy 82 Wh Weight 365 g Charging temperature range 5℃ to 45℃ Storage temperature and humidity -10~30℃，65±20%RH Recommended storage temperature 22-28℃ Max charging power 93W Charging time 90 minutes -
Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5AVoltage 13.2±0.1V Rated power 66W -
Multi-Charger
Voltage 13.2 V Charging temperature range 5℃ to 45℃
-
-

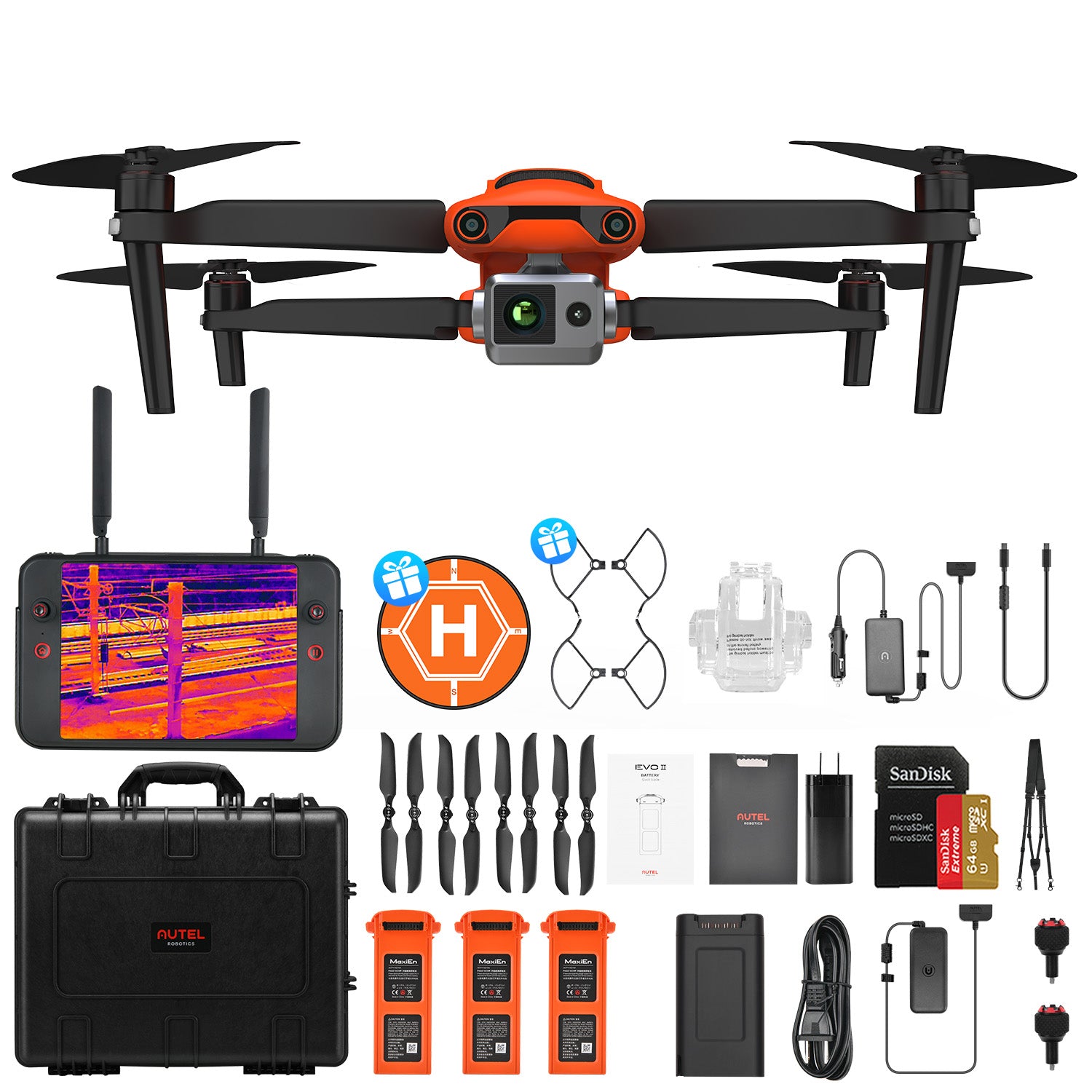

What's In The Box?Aircraft(Battery,propeller,gimbal cover,32G SD card included)*1
Remote Controller(sticks included)*1
Spare Propeller(pair)*2
Spare Battery*2
Battery Charger+Power cable*1
Car charger*1
Multi-charger*1
RC charger*1
RC charger cable*1
Spare control stick(pair)*1
RC protective case*1
RC landyard*1
Carring Case*1
Quick guide*1
-
Autel Explorer
Unlock your drone's potential with the Autel Explorer App. With the app, you can easily control the EVO I, EVO II Pro, EVO II Dual, and EVO II Enterprise Series. Your mobile device will act as a central display (HD Live View) for aerial photography, cinematography, and flight parameter adjustments. Perform advanced autonomy features such as dynamic track, tripod track, parallel track, gesture control, precision flight, dual stability, and mission planning. (Some features are only available on the EVO II Series).
